Hasco Flexible mould cooling

Editor: Steffen Donath

The TempFlex Z976/… and Z977/… supplied exclusively by Hasco offer good conditions for the temperature control of mould plates or spacer plates with simultaneous conformal cooling.

Related Companies

Since there is no deep-hole boring and plugging, a considerable cost reduction can be achieved when using the new Tempflex for manufacturing the mould plates.

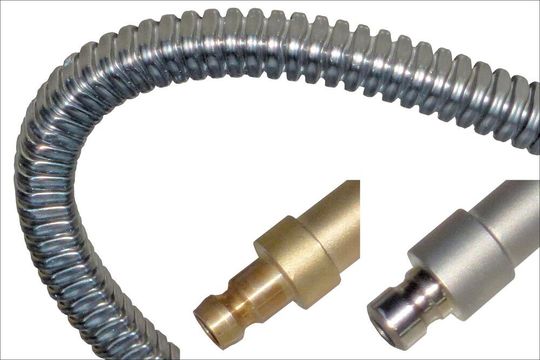

Since there is no deep-hole boring and plugging, a considerable cost reduction can be achieved when using the new Tempflex for manufacturing the mould plates.
(Source: Hasco)

The flexible metal-braided hose allows fast and simple assembly, interchangeability, and is adaptable to any groove pattern. Existing moulds with inadequate cooling performance can be optimised without any problem, according to the company.

Through the deflection of the cooling via arcs and not 90° corners, pressure losses are significantly reduced while the flow rates remain the same. High temperature resistance is also guaranteed. The square hose cross-section offers optimum heat transfer to all mould plates. Corrosion in the cooling channels can be eliminated.

The Hasco Tempflex Z976/… is available in 9 and 13 mm diameters and three different lengths with a metric connection and also Z977/… in 9 mm as per the US Standard. Other lengths can be supplied as custom sizes.
