Hasco New slide unit range Z18140/…, complex and flexible

Editor: Steffen Donath

Movable cores are required in the mould in order to allow the injection moulded part to be removed, the company explains. Use is made primarily of slide elements for this purpose.

Related Companies

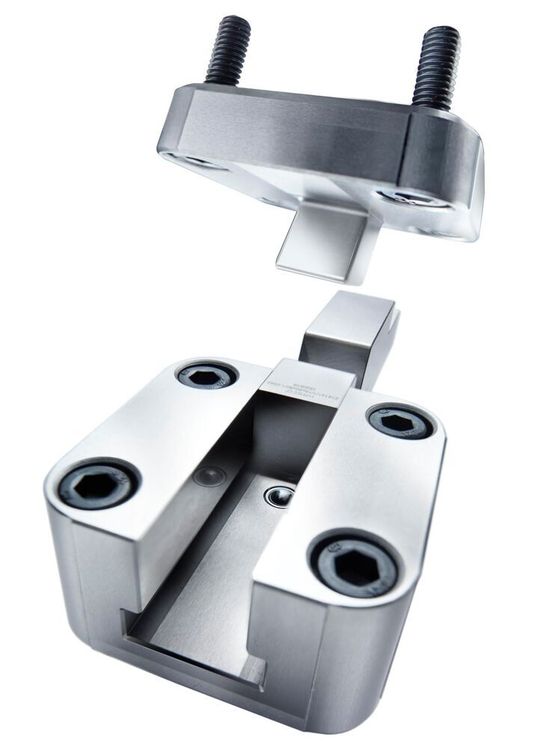

Compatibility is guaranteed between all the components in the Hasco slide unit range.
Compatibility is guaranteed between all the components in the Hasco slide unit range.
(Source: Hasco)

The new variable Hasco slide unit range Z18140/... sets innovative standards in the flexible demoulding of fairly small undercuts or recesses, the provider promises. The extensive portfolio with slide housings (square and round) and slide locking heels (square, round and rectangular) offers a maximum of variable mounting options.

Three standardised mounting geometries are supplied, and slides are also available for contour inserts for customised mould core designs, Hasco explains.

The combination of two slide variants produces twelve different assemblies in a wide range of dimensions and materials, either with or without DLC coating. All in all, Hasco offers dimensionally coordinated parts for more than 250 innovative slide combinations, according to the company.

The slide units, which can be easily installed from the parting plane, are characterized, among other things, for their long slide paths. Corresponding adjustment discs are available for aligning the slide positions. An optimum locking system allows the absorption of high forces. The DLC coating on the slides ensures optimum sliding properties and a long service life.
