Guide systems in punching die construction

Rolling and sliding guides Guide systems in punching die construction

09.02.2021Editor: Alexander Stark

Guide systems are one of the most important components of a properly functioning punching tool. In this area, Meusburger offers an extensive and systematic range of rolling and sliding guides for different requirements. In addition to numerous combination options between guide column and guide bushing, the guides are DIN/ISO compatible and optimally matched to Meusburger standard frames

Related Companies

Meusburger Georg GmbH & Co. KG

HASCO Hasenclever GmbH + Co KG

BORIDE Engineered Abrasives

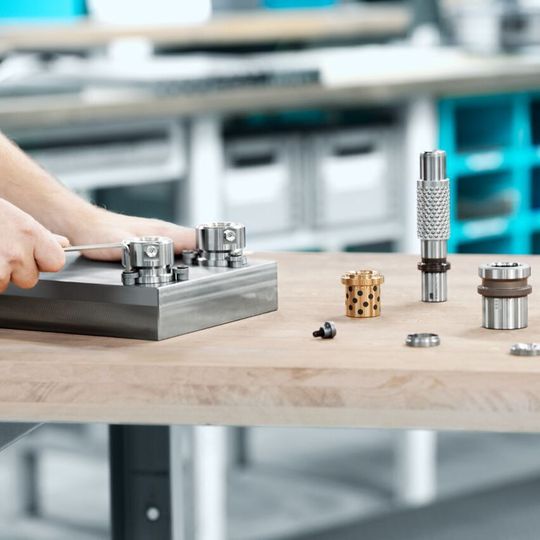

Meusburger offers an extensive and systematic range of rolling and sliding guides.
(Source: Meusburger)

The rolling guides offered by Meuseburger ensure maximum guiding speeds and high stability thanks to low rolling friction and preloaded rolling elements. These elements are preloaded between 4 and 15 µm, depending on the guide diameter. The company offers both ball and roller guides. The main difference in this case is the contact surface of the rolling element.

On the other hand, the large contact surfaces of sliding guide bushings, allow for maximum transverse forces to be transmitted.

In addition to the standard guide, Meusburger also offers special guide systems: for small installation spaces, for modular technology as well as for large-scale toolmaking. Due to the compatibility of the guide columns and bushings according to DIN/ISO, they can be easily interchanged. This results in a maximum degree of flexibility in the design of the guide system depending on the application.

The installation dimensions of the guide elements have been perfectly matched to Meusburger's standard frames. This guarantees consistent standardization of the punching frames. The range of accessories includes elements for cage positioning, column and guide bearings, and components for column and bushing mounting.
