Standard parts Slanted slide as a standardised compact unit

Source: Press release

Related Vendors

To implement complex mould part geometries and minimise in-house production efforts, Knarr offers standardised slanted slide units. These components also ensure quick replacement in the event of damage or wear.

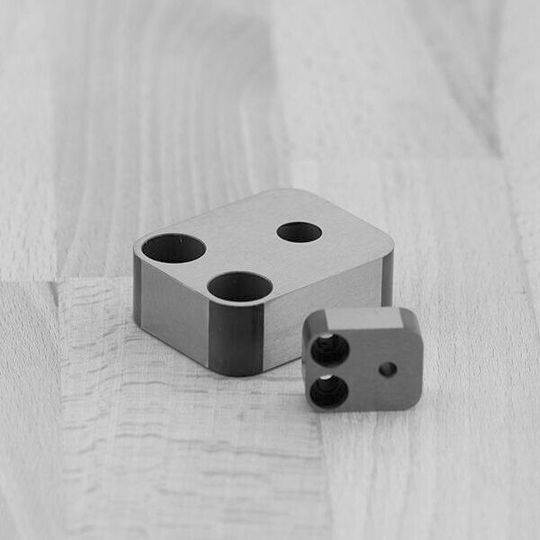

Standardised slanted slide units help with the implementation of complex mould part geometries.
Standardised slanted slide units help with the implementation of complex mould part geometries.
(Source: Knarr)

The Knarr standard portfolio includes four different types of the slanted slide unit (224280) in widths of 16 mm, 20 mm, 26 mm and 32 mm. For all types, the appropriate slanted slide rod is available in two alternative lengths.

The suppliers offers standardized guides (224281) for all types of slanted slide guides. The available angles (5°, 10° or 15°) largely determine the demoulding path. The stroke ranges from 1.87 mm (15°) to 2.83 mm (10°) and even 5.71 mm (5°).

An alternative to the standard guide is a corresponding blank version (224282). Its angle can be machined depending on the application and the slide travel can be adjusted even more individually. A starting hole facilitates machining, which can be provided as a service by Knarr, but which can also be done by the customer.
