5-axis radial machining Open Mind offers new function in its CAD/CAM suite

Source: Open Mind

Related Vendors

The Hypermill CAD/CAM suite from Open Mind is a highly regarded end-to-end complete solution in the mould and die industry, as it also covers aspects such as electrode manufacturing and wire EDM. Now the introduction of 5-axis radial machining takes center stage.

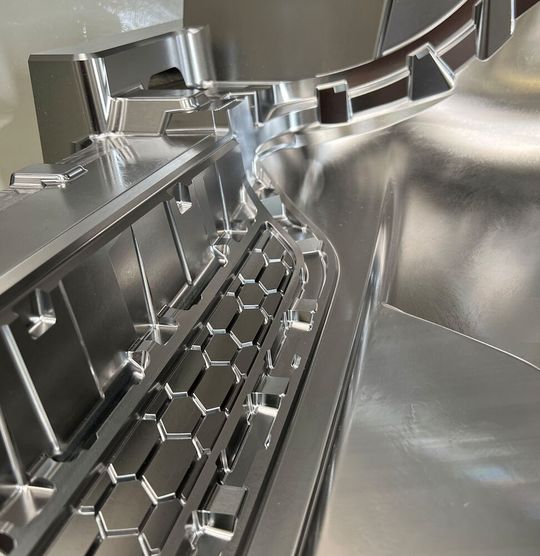

Hypermill high-precision machining technologies make extremely high surface qualities achievable.
Hypermill high-precision machining technologies make extremely high surface qualities achievable.
(Source: Open Mind)

The newly integrated 5-axis radial machining function in Hypermill is especially suitable for the process-optimized production of round moulds with surfaces that require zero post-processing, such as in blow moulds. In bumper production, high surface qualities are achieved by using high-precision machining technology.

The rise in complexity of bottle designs is also increasing the quality expectations put on blow moulds. There is a wide variety of containers that often have additional features that double up as functional elements. This can include handles, decorations, and individual brand logos. The 3-axis machining of these types of moulds sometimes requires very long tools and part reclamping to mill undercut areas. A 3-axis approach also means that the point where the milling tool makes contact with the semicircular profile varies, which can result in uneven surfaces. This is where optimized 5-axis strategies can help.

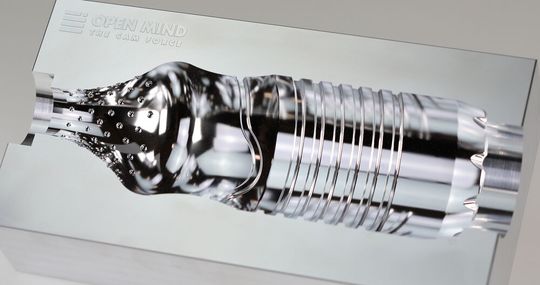

Blow-bottle moulds: high-gloss surfaces and  smooth transitions
Blow-bottle moulds: high-gloss surfaces and smooth transitions
(Source: Open Mind)

The improvements to the current version of Hypermill combined with 5-axis radial machining are setting standards in blow mould machining. Thanks to a new, radial projection method, the toolpaths are calculated extremely quickly, and the user can apply various machining strategies to respond flexibly to the component conditions. The new ‘Flow Equidistant’ infeed strategy is the first of its kind that supports the generation of toolpaths with a constant infeed for vertical and challenging surfaces. This means these surfaces can be integrated into the overall machining sequence and processed in a single step. Seamless machining with a very high surface quality is guaranteed. Every machining sequence needs to produce sharp corners at the junction of the upper and lower halves of the mold to avoid problems during the molding process. An automatic tangent extension feature eliminates the manual CAD steps needed to extend the numerous surface elements found in complex designs.

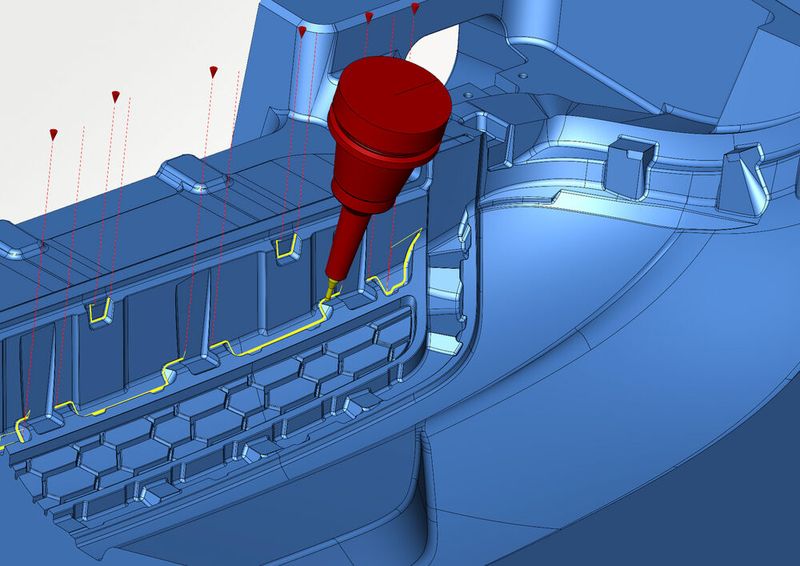

Hypermill rest material machining: precise transitions for a bumper mould
Hypermill rest material machining: precise transitions for a bumper mould
(Source: Open Mind)

Bumper segments with a high level of surface quality

Hypermill high-precision machining technologies are also used in the tool and mould making to manufacture bumper segments, for example. The highly superior quality of the components’ surface is achieved using ball and barrel cutters. Two CAM technologies ensure that the various tools and positions during machining are no longer recognizable after the process has been completed. The first of these is the ‘Surface precision mode,’ which calculates the toolpath directly on the surfaces of the CAD model. The machining tolerance can be controlled down to the µm range. The distribution of the NC point is optimally adapted to the machining tolerance, resulting in a homogeneous milling pattern. The second of these is the ‘Smooth overlap’ function, which improves the surface quality of transitional areas, making transitions so smooth that they are hard to measure and almost invisible to the naked eye.

The new 5-axis radial machining makes Hypermill even more important for industries that require high-quality moulds, such as the food and beverage, pharmaceutical, cosmetics, household goods and automotive industries. The CAD/CAM suite covers every process from the data import to the NC code simulation — and that includes electrode manufacturing and wire EDM. Hypermill offers extensive options to automate the CAM programming process and can be integrated into higher-level systems such as MES or PLM systems.
