From wear-resistant DLC coatings to anti-twist pins and blades built for extra-long strokes, Meusburger's ejector portfolio now covers nearly every demand mould makers face. A new configurator adds instant access to pricing, lead times and CAD data, letting designers select and customise components in a single step.

With a structured ejector range, high availability and digital support across procurement and design, Meusburger gives customers a streamlined path from selection to delivery. Short lead times and standard components held in stock boost supply reliability and keep downtimes to a minimum, while standardisation itself pays off twice over — in consistent quality and in tangible time and cost savings. Rounding out the offering is a configurator that speeds up selection and customisation, delivering CAD data, pricing and delivery information in one step.

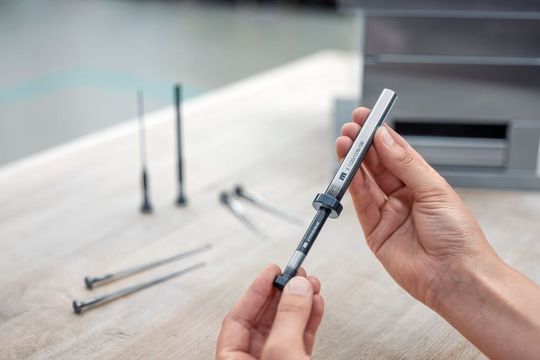

Ejectors are among the components subject to the greatest stress in injection moulding and die casting moulds. Their design greatly influences process reliability, service life and the quality of the moulded part. With a comprehensive range of ejector pins, ejector sleeves, blade ejectors and core pins, Meusburger offers the right solution for almost every application. Thanks to consistent warehousing of all standard components, customers benefit from high supply reliability, short lead times and fast availability of spare parts. This reduces downtimes and ensures that operations run smoothly. At the same time, the standardised and clearly structured range simplifies the design, procurement and manufacture of moulds. Certified suppliers and reliable quality processes ensure consistently high product quality.

Find the right ejector quickly and easily

With the ejector configurator, Meusburger enables the fast selection of standard ejectors and the customisation of ejectors cut to length and ready for installation, with a length tolerance of 0/+0.02 mm. Price, lead time and CAD data are available immediately after configuration. Special manufacture items can also be configured directly in the system. The configurator automatically recognises standard items and also checks whether they can be used as a basis for cut-to-length dimensions. Designers and mould makers benefit from reduced procurement effort and faster integration into existing designs.

For different requirements in mould making Meusburger offers numerous ejector solutions which are desinged to improve process reliability, service life and the quality of the moulded parts in a targeted manner:

• DLC-coated ejectors: The wear-resistant DLC coating reduces friction and minimises wear. This increases the service life, improves process reliability and protects sensitive component surfaces – especially when there are high requirements for wear resistance and surface quality as well as in cleanroom applications.

• Anti-twist ejectors and core pins: The integrated anti-rotation blocking ensures continual and precise positioning in the mould. This reduces burr formation, ensures reproducible part quality and at the same time simplifies design and manufacture.

• Ejector pins for ventilation: The different variations are available in a wide range of diameters and lengths as well as with DLC coating and enable fast, targeted ventilation of the cavity directly via the ejector pin. Thanks to the ventilation surfaces along almost the entire shaft length, the pins can be cut to custom lengths and are therefore particularly suited to being retrofit into existing moulds.

• Blade ejectors: The range includes numerous widths, thicknesses and lengths as well as special extra long blades for particularly large ejector strokes. Variations with 2 or 4 angle radii are available, and additionally all dimensions are also available as a DLC coated version.
