Components for hot runners New S Series Cylinder: a compact solution for small pitch

Editor: MA Alexander Stark

Italy — The new S Series Cylinder, a patent pending solution from HRS Flow, is now available. This new compact solution reduces pitch and is suitable for technical materials.

Related Companies

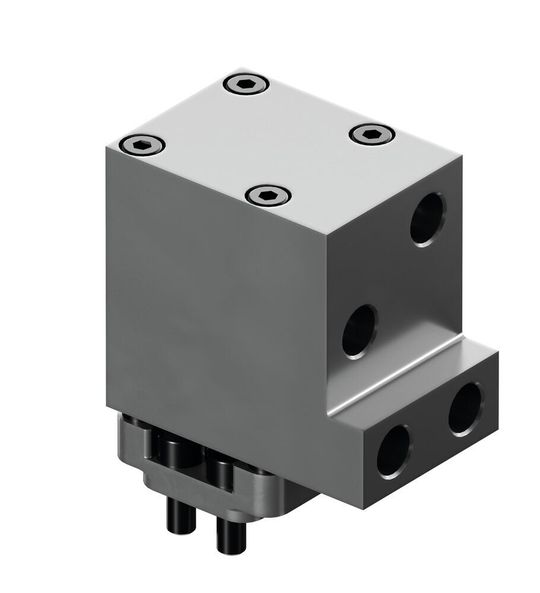

The S Series Cylinder is available in two different layouts: the basic and the Adjustable versions. Basic version: cylinder height 62 mm (2,44 in).
The S Series Cylinder is available in two different layouts: the basic and the Adjustable versions. Basic version: cylinder height 62 mm (2,44 in).
(Source: HRS Flow)

The S Series Cylinder from HRS Flow provides several benefits for customers. Due to its compactness, the plate thickness can be lowered; and secondly, its reduced width allows for a minimum nozzle pitch of 37 mm in order to meet two main market needs: compactness and accuracy. Moreover, the adjustable version allows for an optimal setting of the pin position.

Suitable for the production of technical and electronic parts and consumer goods, it is the ideal solution for small shot-weights and multicavity applications. The new compact solution makes possible the production of small automotive parts requiring an extreme accuracy. From the exterior automotive emblems to the small interior switches, from the tiny components of the air-conditioning and the aspiration systems to the interior and exterior handles. Available for both hydraulic and pneumatic systems, it can work in demanding conditions. It achieves a hydraulic max. of 80 bar and a Pneumatic max. of 15 bar. Fixed on manifold, it allows an easy maintenance of the cooling line.
