Fakuma 2017 Mini valve gate nozzle for small parts injection

Editor: Rosemarie Stahl

Thermoplay presented a number of hot runner innovations at Fakuma 2017. Among them was the F Ø11 for special applications in cosmetic, medical and food packaging markets.

Related Vendors

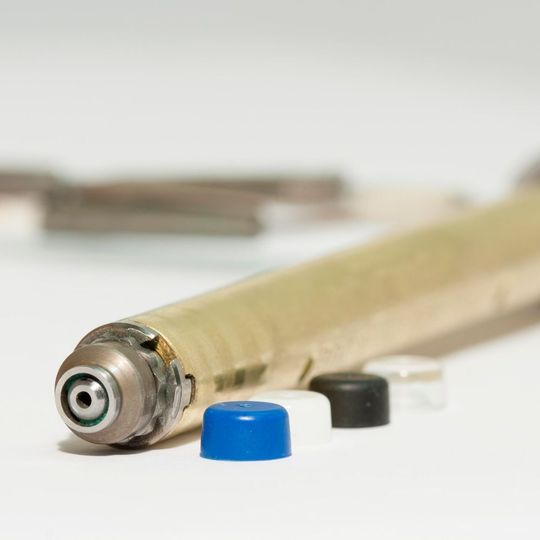

The nozzle F Ø11 is designed for increasing requirements of special applications, for example in cosmetic packaging.
The nozzle F Ø11 is designed for increasing requirements of special applications, for example in cosmetic packaging.
(Source: Thermoplay)

The new F Ø11 is a mini valve gate nozzle. It was designed for applications in restricted areas. It has a minimum pitch of 17 mm. According to Thermoplay, the compact profile allows for injections on an insode surface of a part. Additionally, the nozzle and tip design allow for low thermal dispersion.

Gallery

According to Thermoplay, the heaters uniformly distribute heat along the whole nozzle surface, consuming little energy of 150W maximum per nozzle. The nozzles are ideal for high cavitation applications requiring increased precision, because the valve gate actuation can be pneumatic or hydraulic, individual or plate actuated.

The pin, available in a cylindrical or conical option, is designed to minimise the witness mark on the part (gate diameter from 0,8 to 1,2 mm) providing a high-quality finish. The FØ11 valve gate nozzle series is available in lengths from 56 to 146 mm as standard. It is suitable for injection of all thermoplastics, excluding abrasive materials, Thermoplay says.
