Circular milling portfolio Milling system for small threads

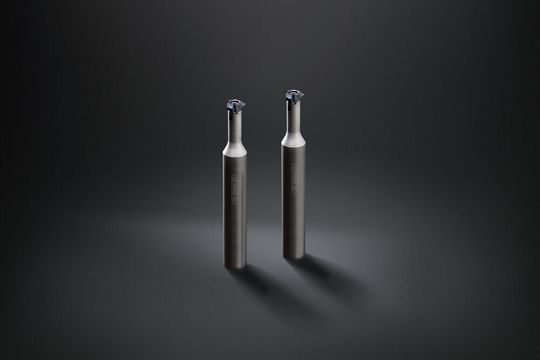

The circular milling portfolio of Paul Horn was expanded by a productive thread milling up to hole diameters of 8 mm (0.315"). Type 304 precision tools are available as partial and full-profile versions for the production of threads.
With its triple-edged 304 milling system, Horn offers a versatile solution for groove milling, finish-boring and chamfering. The insert has a cutting circle of 7.7 mm (0.303"). In conjunction with the vibration-damping carbide shank, this makes it more flexible to use than solid carbide groove milling cutters. The substrate and geometry can be easily matched to the machining process. The shanks feature internal cooling for targeted cooling of the contact zone.
The Horn circular milling system offers users a host of process advantages: it is fast, reliable and achieves good surface results. During the process, the tool plunges into the material either at an angle or almost horizontally and is then driven on a helical path. This means that threads, for example, can be manufactured to a high level of reproducible quality. When compared to machining using indexable inserts on larger diameters or solid carbide milling cutters on smaller diameters, circular interpolation milling is generally more economical. Circular interpolation milling cutters have a wide range of applications: they are able to machine steel, special steels, titanium and special alloys. These precision tools are especially suited to groove milling, circular interpolation milling, thread milling, T-slot milling and profile milling processes.
