Parts cleaning Ecoclean combines multiple cleaning processes in one system

Rising cleanliness requirements and smaller batch sizes are changing the economics of industrial parts cleaning. Ecoclean has developed a compact solvent cleaning system designed to combine adaptable processes with lower energy and resource consumption.

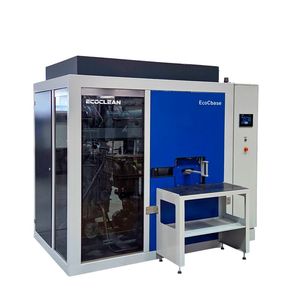

On the one hand, general industry is facing increasingly stringent requirements for component quality and cleanliness. On the other hand, more diversified product portfolios are leading to lower production volumes. To remain competitive in the face of these challenges, component cleaning must be carried out reliably, economically, and in an energy- and resource-efficient manner. For these applications, Ecoclean has developed the flexible EcoCbase — a cost-effective yet high-performance entry-level solution for cleaning with non-halogenated hydrocarbons and modified alcohols. The compact plug-and-play system, available in S and M versions, requires a footprint of just 2,000 x 1,400 mm and 2,500 x 1,600 mm (L x W), respectively. Its comparatively low transport height of 1,940 mm ensures that the single-chamber full-vacuum cleaning system can be easily installed even in areas with low ceiling heights. The maximum batch size for the EcoCbase S is 430 x 225 x 200 mm s (L x W x H), with a weight of 50 kg; the M version is designed for batches weighing up to 75 kg with dimensions of 530 x 320 x 250 mm. The conveyor is operated manually as standard via an ergonomic loading station and can be automated upon request.

High flexibility, cost-effectiveness, and process reliability

The system, which comes standard with a flood tank, ensures that the solvent is always available in optimal quality thanks to full-flow filtration during filling and emptying of the working tank, as well as bypass filtration. If the system is equipped with a second tank, this tank features a corresponding, separate filtration system. Continuous solvent treatment via the integrated distillation unit also contributes to consistently optimal media quality. The separated oil is continuously discharged into an external tank with level monitoring. This enables the recovery of expensive machining oils, which, in addition to long media service life, contributes to low operating costs.

Gallery

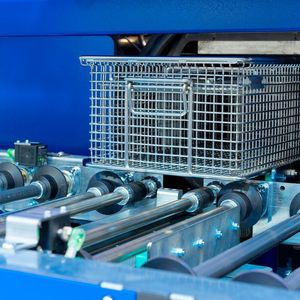

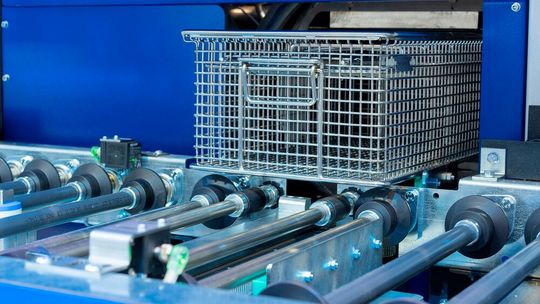

The working tank is filled and emptied using high-performance, frequency-controlled flood pumps tailored to the parts being processed. To ensure that various components are cleaned according to specifications and that the required cleanliness standards are met, standard processes such as steam degreasing, spray and immersion cleaning, and injection flood washing can be freely combined with ultrasonic cleaning, Ultrasonic Plus, and Pulsated Pressure Cleaning (PPC). The cleaning effectiveness of these processes can be further enhanced by a frequency-controlled rotary drive for part rotation and positioning. This high level of flexibility ensures that the required cleanliness for pre-cleaning, intermediate cleaning, and final cleaning tasks is always achieved reliably and cost-effectively. The necessary process steps are stored in the system control as part-specific cleaning programs and can be easily selected via the intuitive HMI interface. With a total of 50 program slots, the new EcoCbase is optimally equipped for both current and future cleaning tasks.

Resource and energy efficiency are also impressive

To minimize energy consumption during cleaning, the EcoCbase not only heats the solvent entirely using waste heat from distillation. The solvent system also incorporates new heat recovery functions that reduce energy consumption and operating costs. The redundant safety concept — which includes multiple automatic monitoring points for all relevant temperatures and pressures — and the virtually emission-free cleaning process also contribute to the safe and sustainable operation of the solvent system. Another advantage is the high flexibility regarding material compatibility, allowing components made of different materials to be cleaned in a single system.

These features enable companies with low volumes of items to be cleaned to make a cost-effective transition to solvent cleaning. Furthermore, the system is ideally suited for decentralized cleaning stations in larger manufacturing environments. Another advantage is that the solvent system can also be operated in regions where the use of water as a cleaning medium and/or the disposal of wastewater from cleaning applications is regulated. A prerequisite is that solvent cleaning is suitable for the application. Ecoclean offers cleaning trials for this purpose at its own test centers worldwide.
