Injection Moulding Cell Collaborative project: New approach to the production of thin-walled packaging

Source: Press release

France — A cooperation between mould makers, robotics and IML label manufacturers, material flow specialists, raw material suppliers and Arburg France resulted in a fully automated Injection moulding cell for the production of thin walled containers.

Related Vendors

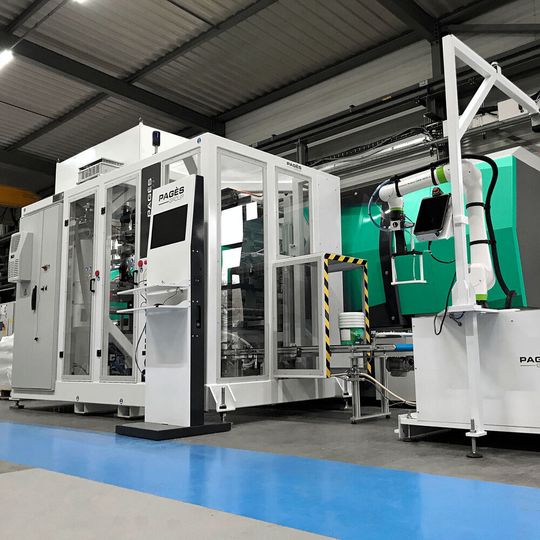

Fully automated injection moulding cell around a hybrid Allrounder 720 H in packaging version.
Fully automated injection moulding cell around a hybrid Allrounder 720 H in packaging version.
(Source: Christophe Brissiaud , Collomb Mécanique)

How do you economically produce thin-walled containers using top-quality recycled material and with maximum output? By having several specialists combine their well-founded expertise. This is what has happened in France as part of the Thin Wall Integra collaborative project. The collaboration pursues several objectives simultaneously, namely the high-volume processing of recycled material into thin-walled containers in a way that is fully automated, fast, and of a consistently high quality.

Arburg’s subsidiary in France has teamed up with Collomb, a mould maker specialising in thin-walled containers, Pagès Group, a robotics expert for packaging, Verstraete, an IML label manufacturer, Koch-Technik, a material flow specialist, and Borealis, a raw materials supplier, to present Thin Wall Integra as a new one-stop shop concept for the production of thin-walled five-litre buckets.

Gallery

Jointly developed concept

The jointly developed concept is based on a fully automated injection moulding cell around a hybrid Allrounder 720 H in packaging version with a 1-cavity mould. The complete cycle only takes around five seconds. In addition to the injection moulding machine optimised for fast cycles, the sequentially operating robotic system is also a top performer. The handling system with telescopic arm that engages from the rear side of the machine first loads the mould with the IML labels. The robotic system then removes the labelled buckets and stacks them on a deposit mat. The stacks are then automatically picked up by a robot for palletising. The two robot technologies used make the system particularly compact. The recyclate is continuously fed in via an automatic conveyor system.

The Thin Wall Integra partners contribute their specific expertise at every stage of the project to demonstrate state-of-the-art technology to manufacturers of thin-walled containers, while also ensuring the necessary quality and meeting the tight deadlines of the packaging industry.

In addition, the joint project is in line with the ecological aspects of plastics processing that are so important today. The product has a proportion of 55 percent recycled material, and its ‘ecological design’ enables material savings of up to 35 percent. Added to this are the simplified stackability of the buckets and the use of HolyGrail 2.0 labels, which make it easy to recycle the materials used by type.
