Revolutionizing Motorsport with Hurco's VM-Series Machining Centres

Machining centres Motorsport inspires subcontractor’s investment in Hurco machines

2025-08-11 Source: Hurco 3 min Reading Time

Related Vendors


A lifelong motorsport enthusiast, RPH Manufacturing’s Richard Haim found his perfect match in Hurco’s VM-series machining centres. Combining speed, precision and smart programming, the machines power the subcontractor’s just-in-time production and drive innovation across its workshop.

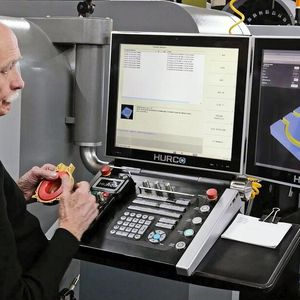

Once the program is sent to a networked VMC on the shop floor, minor edits may be made before the program is run, often after it has been collision-checked by executing a dry-run at a 50 mm Z-axis offset.(Source: Hurco) — Once the program is sent to a networked VMC on the shop floor, minor edits may be made before the program is run, often after it has been collision-checked by executing a dry-run at a 50 mm Z-axis offset.
(Source: Hurco)

RPH Manufacturing, a tier one supplier based in Wimborne, UK, has consistently prioritised precision, efficiency, cleanliness and innovation throughout its long history. At the helm is owner and managing director Richard Haim, whose passion for engineering, which began 57 years ago, led him to start his own company in 1981.

When asked why he has a preference for vertical machining centres (VMCs) from Hurco, Richard said: “I like the brand because I know a lot of the Formula 1 Teams are customers of theirs. I have been a lifelong motorsport enthusiast and I thought there could be no better endorsement to purchase a Hurco machine tool.”

Gallery

Richard Haim, owner of RPH Manufacturing.(Source: Hurco)

Richard at his dedicated Winmax programming hub.(Source: Hurco)

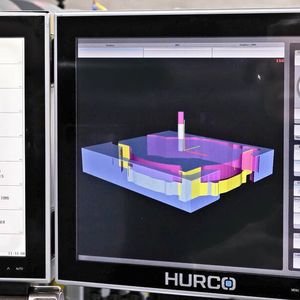

Simulation of a programmed cycle may be carried out on the right hand screen of a Hurco WinMax control.(Source: Hurco)

Gallery with 8 images

Four Hurco VM-series machines, equipped with Max 5 twin-screen controls running proprietary Winmax conversational programming software, now form the backbone of RPH’s workshop. They enable the company to deliver more than 45,000 parts per year to a wide range of industries. Just-in-time and Kanban systems offer customers reliable, often daily supply of parts keep their businesses running and minimise their stockholding.

Richard’s relationship with Hurco dates back to 1999 when he ordered his first VMC, followed one year later by a second. Since then, he has added two more to his prismatic machining capacity, drawn by the machines’ versatility, user-friendly control system and consistently high-quality output. He now uses a Hurco VM10i, a pair of VM20i models and a VM30i. All have dual-screen controls, allowing program editing on the left-hand side while high-resolution component and toolpath graphics appear on the right.

RPH benefits from Hurco’s Winmax conversational programming at the VMC controls, plus an offline seat of the software, which allows data to be prepared remotely and imported directly into the CNC systems on the machines. This seamless workflow does not tie up the machining platforms unnecessarily and shortens order turnaround times. The twin-screen interface, toolpath simulation and dry-run capabilities further support RPH’s commitment to right-first-time production.

Richard is always open to innovations and new working methods that can make his business perform more efficiently. A good example is the way in which he has embraced Hurco’s Solid Model Import software. Already a user of Hurco DXF software, he was easily able to realise the additional benefits of applying dimensions directly from a STEP file into a conversational program.

One of the main benefits is that data entry errors are almost eliminated. Imagine a job that involves 100 drilled and tapped holes. A window is drawn around the holes to select them and a tool is chosen for each operation. The rest of the programming is completed automatically. If Tool Optimisation is selected, the number of tool changes is minimised, allowing the machining cycle to be as efficient as possible.

Machining area of the RPT800DSH in which, for the first time, the machine table and rotary axis bearings, in addition to the torque motors, are thermally controlled. Spindle zero point in the Z-axis is measured to sub-micron accuracy using an external, non-contact sensor to enable growth compensation. (Source: Roeders/ Hurco)

One feature within Winmax that Richard singles out for particular praise due to its utility is 3D Mold / Swept Surface. The functionality in Winmax is used within the conversational programming environment to enable 3D toolpaths to be created by sweeping a 2D profile along a defined path, without the need for G-code or CAM software.

It is intended to assist in programming parts with complex, contoured geometry like pockets whose cycles cannot easily be created using standard 2.5D features, such as compound angles. It can reduce programming time by as much as 80 percent, depending on the part, and optimises the tool path to achieve exceptional surface finish with user-defined step-overs and direction of cut.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Programming from a Winmax desktop hub, Richard sends programs to the shop floor where he sometimes makes small edits on the left hand screen, confident that the networked machines will perform flawlessly. As the control on each Hurco is identical, according to their availability, parts can be produced on any of them, leading to versatile production planning.

After 44 years in business, Richard is still as committed as ever to running his VM-series machines and has set his sights firmly on reaching RPH’s 50-year trading milestone, which will be in 2031. His unwavering commitment to Hurco underscores the value the machines have brought to his business and his confidence in the supplier’s ability to support his continued success in the future.
