Pre-assembled and pre-wired systems and drop-in solutions

| Editor: Briggette Jaya

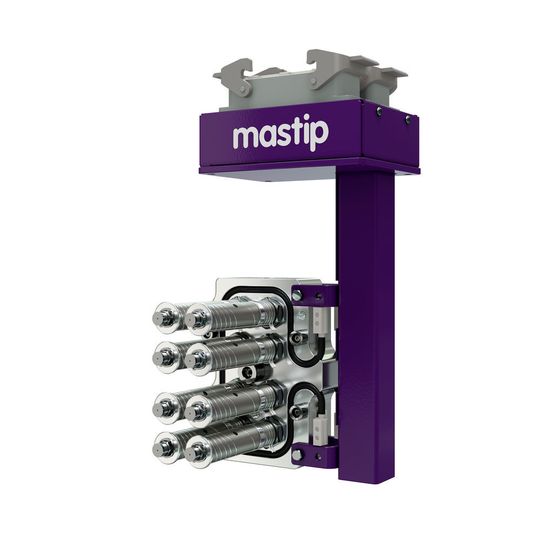

The Nexus system is customised to specification requirements and ready to be installed into the mould.
The Nexus system is customised to specification requirements and ready to be installed into the mould. (Source: Mastip)

Mastip Technology recently released their next generation of drop-in solutions, the Nexus pre-wired system and Veri-Shot single valve gate system, which incorporates the company's thermal performance – Flow-Loc nozzle technology.

Shown recently at Chinaplas and soon to be unveiled at the NPE exhibition in Orlando, USA, Mastip Technology has just released their next generation of hot runner drop-in solutions, the Nexus pre-wired system and Veri-Shot single valve gate system, which incorporates the company's thermal performance – Flow-Loc nozzle technology.

The global company that is based in New Zealand says the Nexus systems are delivered pre-assembled and pre-wired, customised to specification requirements and are ready for installation into the mould. Nexus is suitable for high-pressure applications and ideal for automotive, appliance and electrical applications. Utilising the Flow-Loc nozzle technology, Nexus offers a thermal profile that provides a wide moulding window to process a broad range of commodity and aggressive engineering grade polymers.

The Nexus systems are compatible with Flow-Loc 16, 19 and 27 series thermal gate nozzles in sizes of up to 600mm with a flow bore between Ø7mm to Ø12mm. Flow-Loc nozzles attach securely to the manifold with a threaded connection for leak-proof solutions, the company adds.

Pre-assembled Nexus also includes a customised wiring trunk to match specific mould layouts, and offers quick removal of the complete unit from the mould.

Mastip's CEO Marc Michel said that Nexus sets a new standard for design and ease of use, whilst paving the way for significant expansion in key market segments.

How to choose the correct hot runner supplier

Guide

How to choose the correct hot runner supplier

06/13/2017 - When confronted with the increase in available hot runner systems on the market, making the correct choice for a hot runner supplier is critical. Three qualities are particularly important to consider in the decision-making process: analysis capabilities, design input and product range. read...

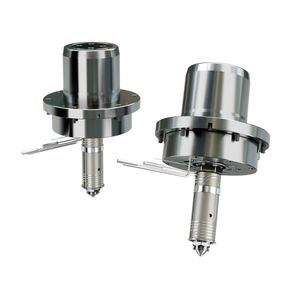

The Veri-Shot system, a single valve gate technology, is available as a drop-in solution with no further assembly required. With a stainless steel construction for maximum service life and a compact annular design, this small system offers solutions to reduce mould height to 54mm for improved machine optimisation.

According to Mastip, Veri-Shot has patent-pending technology that enables precise control in the injection process. It incorporates Flow-Loc 19 and 27 series nozzles that screw directly into the lower manifold, providing a secure, leak-proof solution. The Flow-Loc range utilises the X-Range tip and nut combinations. Veri-Shot is ideal for applications requiring a highly cosmetic gate finish and includes options for either tapered or parallel shut-off pins ranging between Ø3.0mm to Ø5.0mm.
