Industrial connections: Mencom introduces enhanced 21.21 metal hoods

Connectors Industrial connections: Mencom introduces enhanced 21.21 metal hoods

14.08.2023 Source: Mencom Reading Time: 1 min

Related Vendors

HASCO Hasenclever GmbH + Co KG

creaform-ametek-logos-vertical-rgb (Creaform)

AMETEK GmbH Division Creaform Deutschland


Meusburger Georg GmbH & Co. KG

Mencom Corporation

Mencom's 21.21 rectangular connectors are ideal for modern industrial applications due to their resistance to environmental factors and compact design. Their new size 21.21 metal hood with angled M25 cable entry is designed to reduce stress on the locking lever and is available in four versions tailored for various environments and requirements.

The wide range of 21.21 rectangular connectors from Mencom offers a number of advantages for modern industrial applications. They provide a secure and reliable connection for power and signal transmission, with high resistance to environmental factors such as dust, moisture, and vibration. In addition, their compact design allows for easy installation and maintenance, making them a popular choice for a wide range of industrial machinery and equipment.

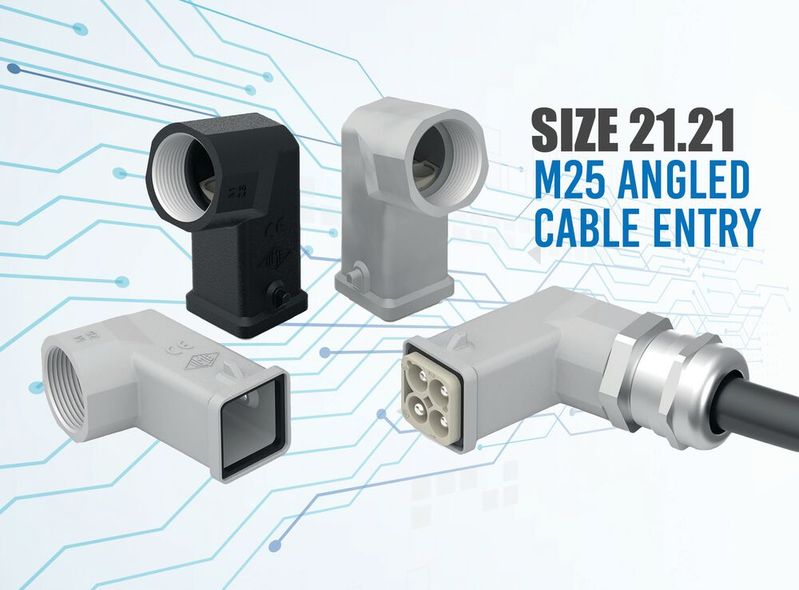

The new size 21.21 metal hood with angled M25 cable entry can accommodate large diameter cables or wire bundles while eliminating torsional stress on the locking lever of the mating enclosure. They are available in four different versions: a standard version for heavy-duty applications, a Desina version with a bonded gasket, a W-type version with improved corrosion resistance for aggressive environments, and an EMC version with a conductive surface for optimum electromagnetic shielding.

These are fully compatible with the existing range of “21.21” enclosures and they are particularly suitable for CQ series inserts with a high number of individual conductors. When installed with the sealing kit (CKR-65 or CKR-65D), they provide IP66/67/69 degrees of protection.

(ID:49659087)
