Indexable tools challenge solid carbide for small diameters

| Editor: Rosemarie Stahl

The cutters of the new families of indexable milling cutters, for example, the Micro3Feed series, carry triangular-shaped inserts with three cutting edges, while the mechanical part that secures the inserts is represented by a screw.
The cutters of the new families of indexable milling cutters, for example, the Micro3Feed series, carry triangular-shaped inserts with three cutting edges, while the mechanical part that secures the inserts is represented by a screw. (Source: Iscar)

While solid carbide tools represent the traditional tool choice for small diameters, today's indexable tools present several advantages over one-piece solid tools. The manufacturer Iscar offers various indexable insert options for these applications.

Rotating one-piece solid carbide tools traditionally dominate the market for diameter ranges of up to 20 mm (.75”) and indexable tool manufacturers have not yet succeeded in penetrating this solid stronghold. Several important factors contribute to the historical perception of solid carbide as a better bet for tooling reliability.

Solid carbide tool accuracy compares favourably to that of indexable tools, particularly for small-diameter end mills and for tools with diameters beyond the range. However, the role of reduced accuracy for tools of small diameter (for example, a milling cutter’s radial run-out) increases in significance as a factor affecting tool life.

An indexable tool is made up of a tool body, replaceable inserts and mechanical parts such as clamping screws or wedges, which secure the inserts in the body. Decreasing the tool diameter necessitates reducing dimensions of the assembly components. Reducing the size of the securing elements weakens their strength and the tool becomes unable to withstand cutting loads under normal machining data. This seriously limits tool application; further decrease may cause degradation of the entire assembly structure.

The prices of small rotating tools are often high compared to the assembled concept, which adds to the perceived limitations of indexable tools in the small diameter range.

Creating a new cutting tool – From concept to spindle

Product development

Creating a new cutting tool – From concept to spindle

10/20/2018 - New cutting tools are continuously being introduced to the market, but what is the process needed to develop a product from concept through to the spindle? Global company Dormer Pramet tasks its product management and development department with creating new tools every year. read...

The indexable option

Indexable tools possess several distinct advantages that make applying these tools within the above range very attractive in the eyes of the customer. In many cases, especially in rough machining, changing a worn cutting edge by simple indexing provides economic benefits compared with having to replace a whole life-expired solid tool with a new tool. In addition, there is no need to use up time and resources on regrinding and recoating worn-out one-piece cutters.

Tool manufacturers have made significant progress in developing reliable designs that could be commercially viable against the solid carbide concept. Work in this direction has shown results already, and assembled mills and drills with interchangeable cutting heads are proving to be a realistic alternative to solid carbide tools.

The introduction of tools with replaceable solid carbide cutting heads signifies a change in focus. Cutting tool manufacturer, Iscar, provides two examples of this concept with the Iscar Multi-Master milling line and the Chamdrill line in drilling.

Performance and accuracy characteristics have positioned the new tools to be functionally competitive with solid carbide designs. Versatility of these lines, where a head can be mounted in different bodies and vice versa where a single body can carry different heads, facilitates various assembly combinations and contributes to reducing items in tool stock.

Cutting cycle time

Another important design approach – “no set-up time” – characterises these lines. A worn-out head does not require spending time on set-up and can thus be replaced while the tool is still clamped in the machine tool spindle. This cuts cycle time and, consequently, reduces production costs.

In contrast, replacing a worn-out solid carbide mill or drill inevitably leads to a new set-up procedure.

In addition, the concept ensures sustainable use of cemented carbide with all the associated advantages. The principle of “indexable” carbide tools has distinct merits and features strongly in tool design within the diameter range that is under discussion. The minimum diameter of Multi-Master milling heads is 5 mm and that of Sumocham drilling heads is 4 mm, while the Multi-Master combined countersink heads for centre-drilling feature a minimum diameter of 1 mm.

Iscar recently introduced a new range of small-size indexable rotating tools under its new Logiq line campaign. The company proposes several families of cutters with a nominal diameter of up to 20 mm. A brief look at some of these families provides a clearer understanding as to whether the new tools will be able to breach the solid stronghold.

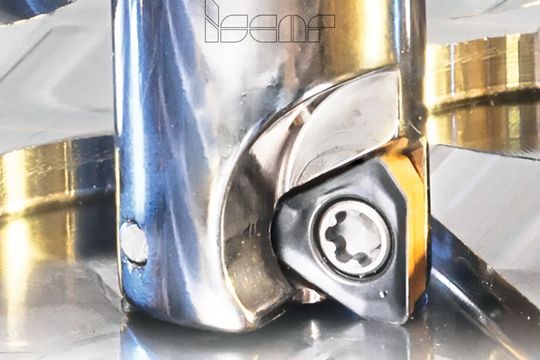

The design of the Heli3Mill family is committed to the classic principle of insert-securing via a clamping screw through the central hole of an insert.
The design of the Heli3Mill family is committed to the classic principle of insert-securing via a clamping screw through the central hole of an insert. (Source: Iscar)

The new families of indexable milling cutters within the diameter range of 8-16 mm attract the most interest. They have several common features: The cutters carry triangular-shaped inserts with three cutting edges, while the mechanical part that secures the inserts is represented by a screw. These families are intended for milling square shoulder or fast-feed (high-feed) milling. But here the similarity ends, and the difference begins. While the design of the Heli3Mill and Micro3Feed families for tool diameters of 10-16 mm is committed to the classic principle of insert-securing via a clamping screw through the central hole of an insert, the Nanmill and Nan3Feed families for tool diameters of 8-10 mm have adopted another concept.

Within such a small diameter range, the central clamping screw, as noted previously, does not provide an acceptable solution. According to the new concept, the screw is located above the insert while the screw head plays the role of a wedge. This approach provides reliable and rigid clamping, ensures a durable and homogeneous insert structure with no hole, and allows insert indexing to be quick and simple.

It is predicted that these new families will be particularly effective in manufacturing compact parts and in machining small-in-size cavities, pockets and small parts utilised in industrial sectors such as die and mould-making, as well as in producing miniature components.

Mapal: “More visible as a process partner”

Q&A

Mapal: “More visible as a process partner”

10/12/2018 - E-mobility not only affects automobile manufacturers, but also has an impact on smaller suppliers. Dr. Jochen Kress of Mapal explains what changes a C parts supplier is facing and how the company intends to compensate for potential sales losses. read...

Small change, large impact

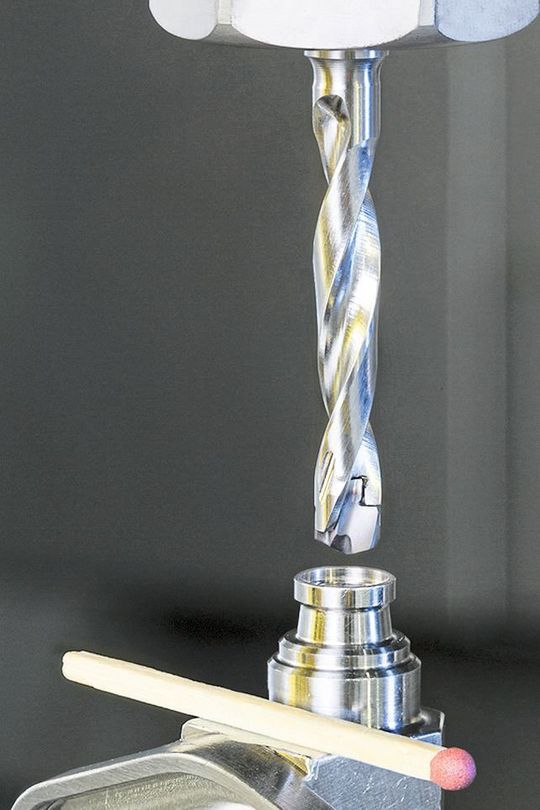

The minimum diameter of Sumocham drilling heads is 4 mm.
The minimum diameter of Sumocham drilling heads is 4 mm. (Source: Iscar)

A 1-mm change in size: Is this a lot or a little? For indexable tools in the small diameter range, it makes a noticeable difference. Iscar’s new Sumocham 4-mm-diameter drilling head represents an important step ahead in expanding the application fields of indexable drills.

Within the small diameter range, indexable tools offer precision and performance advantages that position them competitively against the more traditional solid carbide tools. Indexable tools are beginning to shear their way into metalworking practices - and the industry is taking note.
