Quality Control High-performance X-ray tomography

Editor: Alexander Stark

With the Tomo Scope XS FOV 500 from Werth Messtechnik, high-performance computed tomography is now available at the price of conventional 3D coordinate measuring machines.

Related Companies

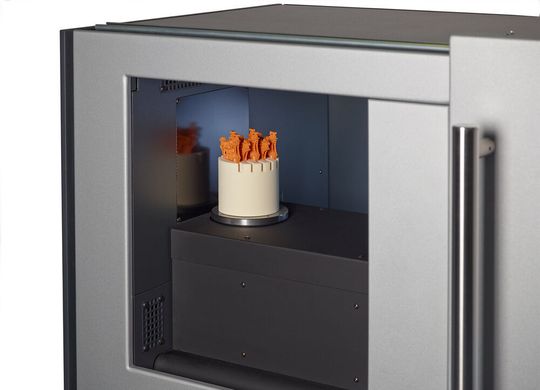

With the Tomo Scope XS FOV 500 it is possible to measure multiple workpieces in one operation.
With the Tomo Scope XS FOV 500 it is possible to measure multiple workpieces in one operation.
(Source: Werth Messtechnik)

At EMO Milano, Werth Messtechnik will be presenting their Tomo Scope XS FOV 500 X-ray tomography solution. The maintenance-free X-ray tube in monoblock design has a voltage of 160 kV and delivers fast measurement results with a power of 500 W. The new machine comes with a two-year warranty on the X-ray tube with no shift limits. It also enables in-process or in-line measurements through on-the-fly operation and real-time reconstruction. It can be fully automated and combined with robot loading. The Tomo Scope XS FOV 500 has compatible interfaces to most software solutions and is suitable in the basic configuration for workpieces up to approx. 200 mm without moving measuring axes.

The Tomo Scope XS and XS Plus devices feature microfocus tubes in a monoblock design with a voltage of 160 kV and an output of up to 80 W. Multi-object measurements, in combination with the relatively high tube power, also enable inline, online and atline measurements with high resolution and accuracy. Several small workpieces, such as medical implants, can be measured together and the measurement point clouds will be automatically separated. The measurement time is only a few seconds per workpiece.
