Getting chips under control

Mapal Getting chips under control

14.05.2020 | Editor: Steffen Donath

To ensure reliable chip breaking, Mapal has developed a new chip guiding stage for machining steel.

Related Companies

MAPAL Fabrik für Präzisionswerkzeuge Dr. Kress KG

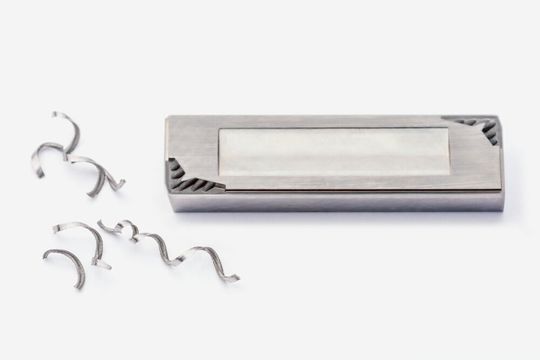

The new chip guiding stage ensures reliable chip breaking in fine machining of steel materials.
(Source: Mapal)

If long chips are produced during fine machining using tools with guide pads, this can have negative effects on surface quality, dimensional accuracy and an automated process flow. The long chips wrapping themselves around the tool can cause damage.

Milling in XL format: On the large Mecof travelling column machine, the insert barrel milling cutter also provides enormous time savings. Shown here is the GF1 trimming the inclines.

The new chip guiding stage combats these very problems. Its special geometry, which has been designed with the aid of extensive FEM analyses and practical testing, means that the chips are broken reliably and automated workflows are not disrupted. The chip guiding stage is compatible with all indexable inserts with AS leads as well as with all coatings. That means that it can be integrated in the relevant insert irrespective of the application in question, thereby producing process reliability, Mapal explains.
