Ball nose end mill

Kennametal Ball nose end mill

10.11.2020Editor: Steffen Donath

Kennametal introduces a new solid carbide end mill for high productivity and tool life in 3D milling.

Related Companies

Kennametal Shared Services GmbH

HASCO Hasenclever GmbH + Co KG

BORIDE Engineered Abrasives

Meusburger Georg GmbH & Co. KG

The Harvi I TE ball nose end mill is available in two different lengths: regular (inch non-necked, metric with neck) and long.
(Source: Kennametal)

Kennametal has introduced an expansion to the Harvi I TE series, the Harvi I TE four-flute ball nose end mill. Designed for highly productive 3D roughing and finishing operations, it delivers lower machining cost through maximum metal removal in a broad range of materials.

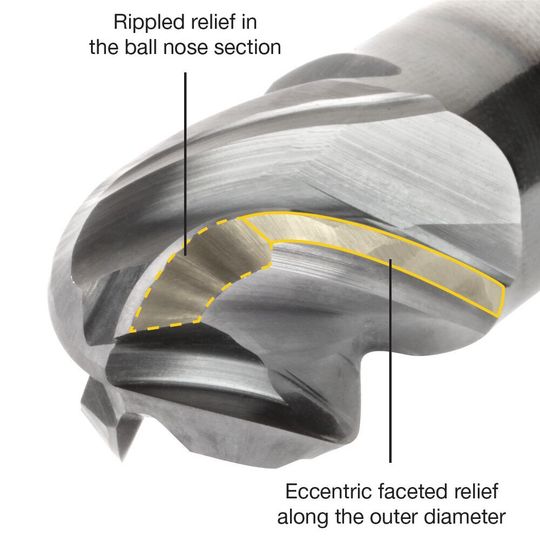

The Harvi I TE ball nose end mill features an innovative proprietary relief that requires a closer look. In the most critical area — the ball nose section — a wavy contour shapes the rippled relief which provides improved coolant flow into the cutting zone, the company states.

The rippled relief enables higher feeds and speeds as well as increased depth of cuts by advanced vibration damping and lower cutting forces.

On the outer diameter, the relief changes its shape, and turns into the eccentric faceted relief. The eccentric faceted relief provides exceptional edge strength, geometric accuracy, lower cutting forces and makes this end mill series very versatile.

Other geometry advancements of the square end styles — including a twisted end face, chip gashing, and a variable helix angle — have also been engineered into this new solid carbide end mill.
