Meusburger Georg Adjustable infeed guides for flexible use on stamping dies

Editor: Briggette Jaya

Austria – Meusburger now offers two variants of modular-design infeed guides.

Related Company

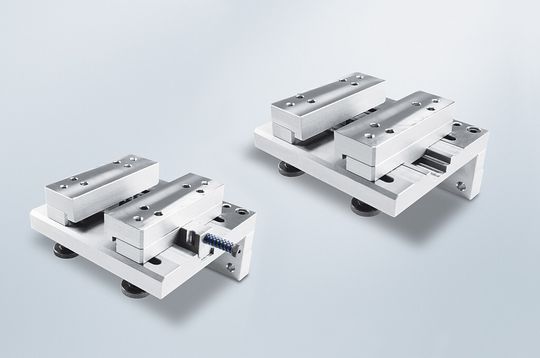

The two variants of modular-design infeed guides frm Meusburger.
The two variants of modular-design infeed guides frm Meusburger.
(Source: Meusburger)

Offered in three heights, they are characterised by infinite width adjustment options of strip width and strip lift. As a result, the guides are said to be suitable for flexible use on different stamping dies.

The E 5620 infeed guide, with its spring-loaded bearing on one side, provides play-guiding for widths from 18 mm to 82 mm. The spring force can be adjusted by a system of compression springs. Three springs in varied thicknesses are included.

The E 5622 features a pre-centred strip led through four needle-roller bearings arranged in opposite pairs. The guiding rails are adjustable for strip widths similar to the E 5620 guide.
