New grooving and cut-off milling system

Cutting tools New grooving and cut-off milling system

09.04.2023 Source: Horn Reading Time: 1 min

Related Vendors

HASCO Hasenclever GmbH + Co KG

creaform-ametek-logos-vertical-rgb (Creaform)

AMETEK GmbH Division Creaform Deutschland


Meusburger Georg GmbH & Co. KG

Horn Cutting Tools Ltd

A new generation of tools for grooving and cut-off milling has been introduced by German tooling manufacturer Horn. The cutter bodies are supplied from stock as side, shell and screw-in milling cutters, the two latter variants being equipped for internal coolant supply. Special surface treatment offers protection against abrasion from chips.

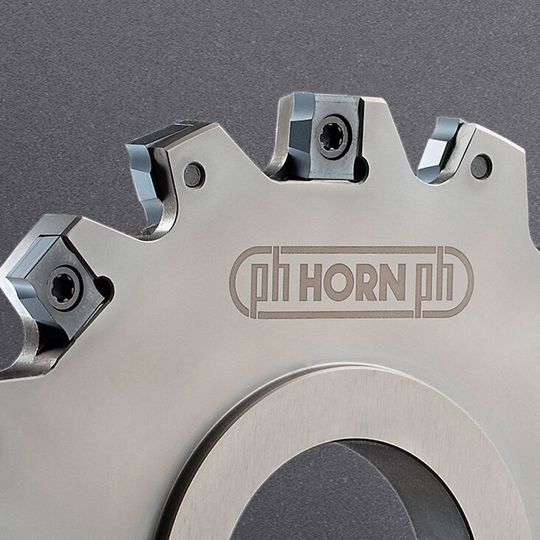

An M475 grooving and cut-off mill from Horn.
(Source: Horn)

Horn offers their new side milling cutters in diameters from 80 mm to 200 mm. Grooving width is optionally 5 mm, 6 mm or 8 mm. As shell mills, the tools are available in diameters from 63 mm to 200 mm and with identical grooving widths. The screw-in cutters are for a groove width of 5 mm and may be ordered in diameters from 40 mm to 63 mm as standard. The effective number of teeth of depends on tool diameter and ranges from two to 13.

The M475 system employs precision-ground, indexable inserts with four cutting edges. Positive geometry and a round chip breaker groove together with a new grade, RC4G, deliver economical, productive machining performance. New also is the availability of an RC4 coating applied using high power impulse magnetron sputtering. It provides high toughness and hardness to enable the machining of steels at elevated cutting speeds and also leads to significantly increased insert life.
