Machining of free-form surfaces

Cutting tools Machining of free-form surfaces

24.09.2022 Source: Horn

Related Vendors

HASCO Hasenclever GmbH + Co KG

BORIDE Engineered Abrasives


Meusburger Georg GmbH & Co. KG

Horn Cutting Tools Ltd

To highlight the numerous solutions it offers for milling free-form surfaces, tooling manufacturer Horn, points to a recent application involving the machining of a plastic injection mould for mass producing the lens for a headlamp.

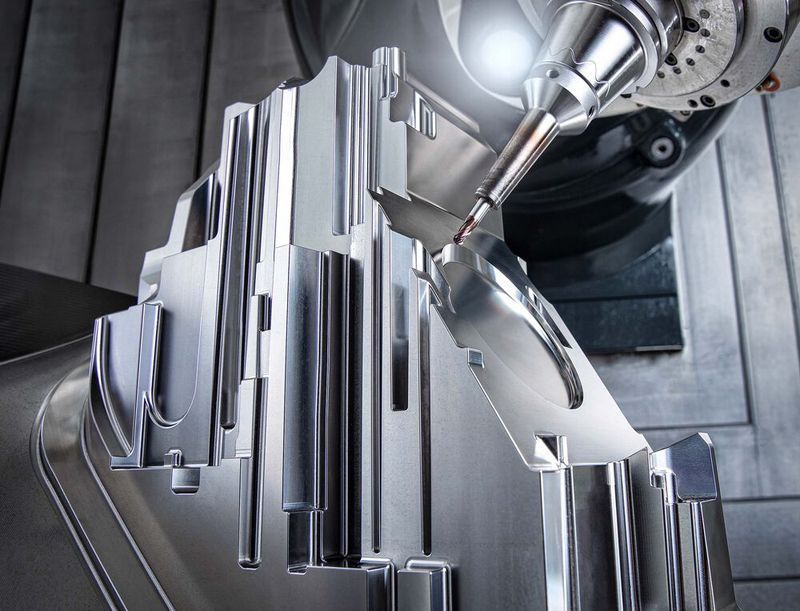

The headlamp lens mould machined with various different types of Horn end mill.
(Source: Horn)

The large number of surfaces, shoulders and radii of moulds for lens and headlamps, required the use of many different tools. High-feed milling cutters with indexable inserts from Horn's DAH 8 system were used for roughing the mould. For finishing, different variants of solid carbide end mills from the Horn DS tool system were employed. In addition to various diameters of ball nose end mills, circle segment end mills were used. The advantage of the latter, in contrast to ball or torus milling cutters, is that fewer passes were required to achieve a given free-form surface quality, lowering the machining cycle time.

In the medical sector, a complex titanium implant was produced in a 5-axis machining centre using Horn DS titanium milling cutters. The shape of the implant comprises numerous free-form surfaces, has about 20 different radii and contains many fillets arranged at different angles. A milling cutter of 10 mm diameter and with a corner radius of 0.2 mm and another of 6 mm diameter with a 0.5 mm corner radius completed the roughing. For finishing, a 1 mm diameter end mill was employed.

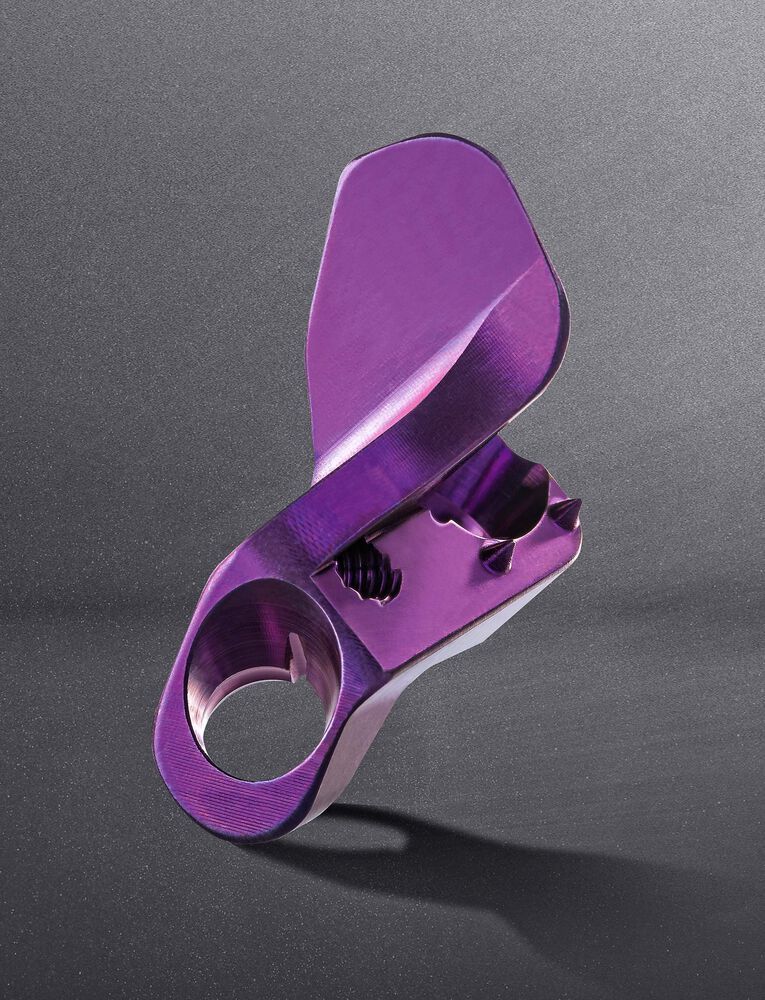

The titanium implant produced using different Horn DS titanium milling cutters.
(Source: Horn)

For the other operations on the implant, DS cutters of 10 / 6 / 4 / 2 and 0.6 mm diameter were used, as well as a 2 mm diameter ball nose end mill and a DCG solid carbide, coated thread milling cutter with three cutting edges. In a single pass, the tool mills a M 3.5 x 0.5 through-hole thread, which is 8 mm deep and inclined at 35°. Milling two tapered recesses proved to be highly challenging. Their 43 degree taper is about 2 mm and must end in a geometrically perfect apex, requirements that were met using a Horn micro milling cutter for the roughing and finishing passes.
