In-mould electronics is an emerging manufacturing methodology for producing backlit, touch-sensitive surfaces, removing the need for costly and possibly unsightly mechanical switches. Components become lighter, less complex and are simpler to produce. ID Tech Ex explored some of the main players and their differing business models.

With IME, conductive traces are printed on a flat substrate.
With IME, conductive traces are printed on a flat substrate.
(Source: Public Domain / Pexels)

How do we communicate with our electronic devices? There are many different 'human-machine interfaces' options, ranging from the well-established such as keyboards, mouse, mechanical switches, to somewhat more recent developments such as the capacitive touch screens found on smartphones. As greater numbers of devices around us gain 'smart' functionality, the ability to incorporate HMI components elegantly and cost-effectively is increasingly important.

In-mould electronics (IME) is one solution. With IME, the conductive traces are printed on a flat substrate, and electronic components such as LEDs may be mounted. This is then thermoformed and infilled with injection moulding to produce a smooth, decorative component with capacitive touch functionality. These components are up to 70 % lighter, take up less space, use fewer parts, and are simpler to produce than the conventional mechanical switches that they often replace. Automotive interiors are the main potential application (see graphic), but the technology also shows promise for consumer appliances especially given the wipe-clean interface it produces.

Within the IME space, there are multiple players developing related technologies, producing components with similar looks and functionalities but slight differences in the manufacturing method to avoid IP conflicts.

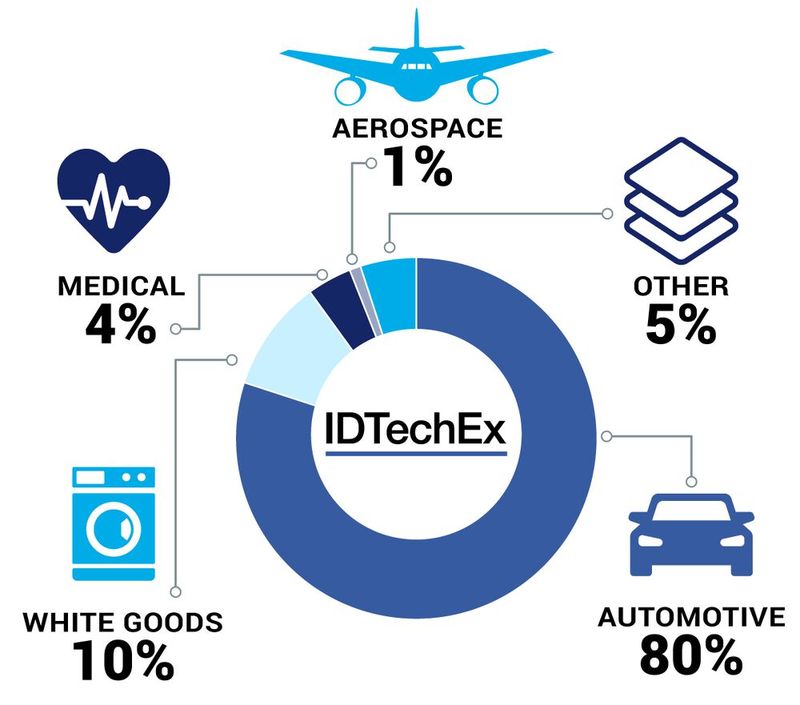

Future (2032) IME market breakdown by application.
Future (2032) IME market breakdown by application.
(Source: ID Tech Ex)

Technology licensing

Arguably the most prominent developer of IME technology is Tactotek, based in Finland. Since its inception in 2011, the company has raised almost 100 million dollars over multiple funding rounds. Its business model is based around technology transfer and licensing. The company has a pilot / small volume production line in Finland but works with multiple suppliers and OEMs to develop products and manufacturing capabilities using its IP. This strategy is highly scalable but requires a significant commitment from licensees.

In-house manufacturing

However, licensing is not the only possible business model. A recent arrival on the IME scene is Symbiose, a French company that spun out of the CEA-Liten research center. Based in Bordeaux, Symbiose has raised capital to build a factory and is planning to manufacture IME parts in-house. This approach has the benefits of keeping technological know-how under wraps and making quality control more straightforward. Furthermore, Symbiose is will likely be able to serve small volume orders, for companies that do not want to license the technology themselves.

Vertical integration

Another player developing IME is E2IP, based in Canada. This company was formed from GGI, and has collaborated extensively with the National Research Council of Canada. Especially notable is its particle-free molecular ink, which promises less decline in resistance when the conductive traces are stretched during thermoforming. E2IP primarily operates a vertically integrated business model, which spans from its molecular ink via design and product development services to component manufacturing.

Hybrid manufacturing

In-mould electronics can be regarded as an evolution of in-mould decorating (IMD), a well-established manufacturing approach for making curved decorative surfaces, such as the control panel on the front of washing machine or switchgear in cars — the difference being the introduction of electronics. Given the similarities, IME is an obvious opportunity for established IMD companies. One example is Advanced Decorative Systems (ADS), which supplies parts to the automotive sector amongst others. It has adopted a hybrid approach to IME, in which the conductive traces are deposited prior to thermoforming and injection moulding, but the SMD components are not. This strategy de-risks the process, since one of the main manufacturing challenges when producing IME parts is maintaining a high yield by ensuring that components such as LEDs are not damaged during the moulding process. On the other hand, one of the attractions of IME relative to existing approaches is that integration of electronic and structural functionality reduces the part count, simplifying assembly and reducing weight.

Market overview

Despite its benefits, and substantial interest from material suppliers that have developed IME-specific substrates and inks, IME that incorporates electronic components within the moulded part has thus far seen limited commercial adoption. However, there are multiple development projects within both the automotive and consumer appliances space. Furthermore, producers of manufacturing equipment such as Arburg are developing equipment for mass production of IME components. As such, ID Tech Ex forecasts that IME component sales will accelerate from 2023/2024.
