Deep hole drilling: How to achieve extremely high cylindrical dimensional accuracy

Complete machining Deep hole drilling: How to achieve extremely high cylindrical dimensional accuracy

2022-12-19 Source: WFL

Related Vendors

Deep hole drilling is a special discipline within the field of machining, particularly as these kinds of machining steps usually require special equipment in terms of both tools and machines. As a machine manufacturer, WFL equips the machine in such a way that it has a number of decisive advantages.

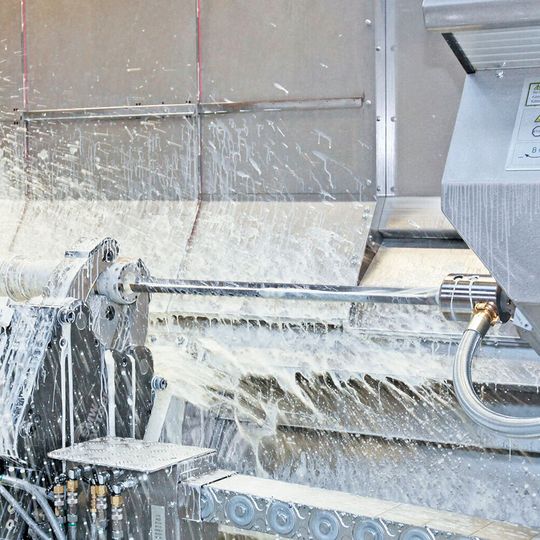

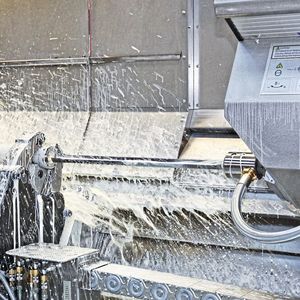

The Millturn machine concept combines all technologies in one complete machining centre - including deep hole drilling.(Source: WFL) — The Millturn machine concept combines all technologies in one complete machining centre - including deep hole drilling.
(Source: WFL)

Almost all industries that utilise complete machining have workpieces that require deep hole drilling. Ultimately, it is the tasks performed in the respective industry that give rise to differences in the process. In the aerospace industry, it is necessary to machine materials such as titanium, Inconel and other heat-resistant alloys. Deep hole drilling is particularly difficult with these materials because the tools are subject to heavy wear and controlled chip breakage requires special measures. Machine manufacturer such as WFL require comprehensive expertise when it comes to using the right tools and selecting the optimum cooling lubricant.

Deep holes in the plastics industry must exhibit extremely high cylindrical dimensional accuracy. Some of these workpieces are subsequently honed to ensure the required quality can be achieved. When performing deep hole drilling in the crankshaft industry, on the other hand, accessibility is vitally important because the oil holes are manufactured in a wide variety of angular positions. The decisive factor here is a flexible machine concept, which facilitates reaching a wide range of angles without setup work for drilling the corresponding holes. Perfect accessibility is possible here thanks to the swivelling B-axis of the Millturn machines.

WFL develops special tool accommodations — partly to ensure stable tool clamping, but above all to deliver the correct coolant pressure and volume directly to the cutting edge of the tool. In a fully automatic sequence, it is also possible to change very long deep hole drilling tools. With WFL, an automatic tool change can be performed by means of a pick-up magazine and prismatic tool changer.

A precise pilot hole forms the basis for good results in deep hole drilling, whereby WFL forms a pilot hole directly in the workpiece to guide the long, unstable drill. These pilot holes are produced with an oversize of < 20 μm to a depth of 1.5x the hole diameter. The utmost precision is guaranteed, thanks to workpiece measurement and WFL measuring cycles. When producing centric holes, the workpiece and tool can be rotated in opposite directions to further improve the quality in terms of hole centre deviation.

Coolant pressure versus coolant volume

Millturn machines offer different options when it comes to the coolant supply. For small hole diameters, for example, the cooling lubricant is fed directly through the milling spindle at a coolant pressure of up to 200 bar, while the coolant volume is conversely decisive for larger hole diameters. It is fed automatically to the tool accommodation via a bypass line. The enclosed working area of the machines is essential with such high coolant pressures and volumes.

Gallery

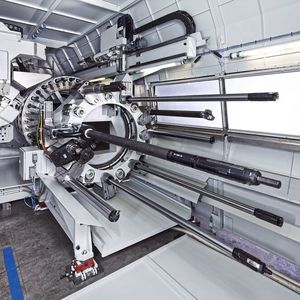

An automatic tool change with long tools takes place using a pick-up magazine and prismatic tool changer.(Source: WFL)

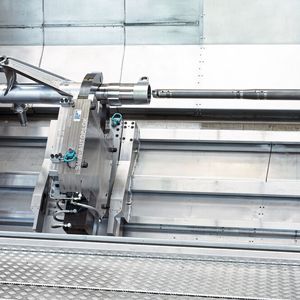

Materials such as Inconel are common in the aerospace industry. Deep hole drilling is particularly difficult with these materials, because the indexable inserts are subject to heavy wear. This requires that the machine manufacturer possess comprehensive expertise.(Source: WFL)

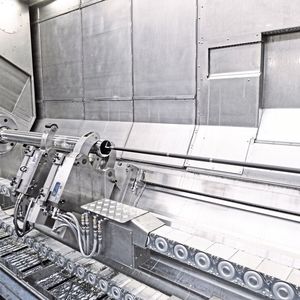

The workpiece is automatically measured with an extended measuring probe.(Source: WFL)

Due to the long tool exposure, deep drilled holes are subject to hole centre deviation that increases with the hole depth. These machining errors cannot be fully eliminated. A particularly interesting machining method is therefore employed here.

Hole centre deviations are measured by intelligent in-process measuring following the completion of deep hole drilling. This is performed either with an extended measuring probe or by means of ultrasonic wall thickness measurement. This involves measuring the thickness of the wall at various circumferential positions and calculating the middle of the centre hole. New clamping points are then produced on the workpiece concentrically to the defective deep drilled hole by means of turn-milling. This allows the completion of all subsequent machining processes with very close form and position tolerance to the deep drilled hole.

The specially developed process monitoring system WFL iControl is used to detect tool breakages or tool wear at an early stage. Such monitoring systems are important in internal machining because the operator has no view of the machining point. The system therefore prevents tool breakages — which endanger the tool and the workpiece — or keeps their effects on the workpiece and the machine to a minimum.
