Versatile face milling platform for roughing to semi-finishing

Machining Versatile face milling platform for roughing to semi-finishing

14.12.2021Source: Press release

Industrial Tooling Corporation (ITC) has introduced the new Widia M1600 face mill series for roughing to semi-finishing operations in steel, stainless steel, cast iron and nodular iron materials.

Related Vendors

ITC Industrial Tooling Corp. Ltd.

HASCO Hasenclever GmbH + Co KG

BORIDE Engineered Abrasives

Meusburger Georg GmbH & Co. KG

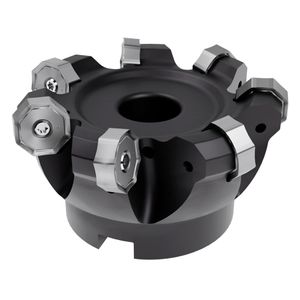

The new Widia M1600 from ITC.
(Source: Tilman Weishart)

With 16-cutting edges and a smart insert design, the M1600 face mill series performs well under various machining conditions including low-power machines, unstable, non-rigid setups, long overhangs and weak fixture conditions.

According to the company, this versatile and cost-effective solution delivers substantial improvements concerning metal removal rates in steel and cast iron for our customers. The M1600 represents a turnkey solution for general engineering, energy and automotive customers who want to reduce their face milling tooling inventory and increase their machining outputs.

Gallery

New Widia M1600 face mill series for roughing to semi-finishing operations.

The M1600 face mills are available in six metric diameter ranges between 50mm and 160mm.

The 16-edged, precision-ground insert with a positive geometry enables low cutting forces and low power consumption resulting in higher tool life and an excellent cost per edge. The M1600 has one universal insert geometry in three versatile grades: WP35CM, WK15CM and WU20PM. The WP35CM grade targets all types of steels, while the WK15CM grade is designed for cast iron materials and performs best in dry applications but can also be used in wet conditions. The universal WU20PM grade can be used for the machining of steel, stainless steel and high-temperature alloys in both dry and wet applications.

The ‘smart’ insert design features a seating surface below the cutting edge that promotes smooth chip flow and reduces cutting forces on the tool. The insert also has a curved cutting edge and is axially positive resulting in reduced power consumption. These key design features coupled with 16 cutting edges make M1600 an economical face milling option. The M1600 face mills are available in six metric diameter ranges between 50 and 160 mm.
