From toolmaker to system supplier Toward the future at high speed: fully automated milling and eroding

Source: Exeron

Related Vendors

Highest-level toolmaking, plastics technology and assembly from a single source — that’ s what Werkzeugbau und Kunststofftechnik Mayweg offers. The company has three locations, 250 employees and 33 million euros in sales, and a fully automated milling and electrical-discharge-machining cell from Exeron that helps meet even the highest customer requirements for precision, speed and economy.

This side view shows how the EDM 312 and HSC 600 eroding and milling machines are positioned at a 90° angle for optimal loading and unloading by the robot.
This side view shows how the EDM 312 and HSC 600 eroding and milling machines are positioned at a 90° angle for optimal loading and unloading by the robot.
(Source: Mayweg)

Mayweg has many years of positive experiences with machines from Exeron in terms of reliability, quality and after-sales support, and this also played a major role in recent successful collaboration. The toolmaker and system supplier already had an Exeron EDM 313 MF20, an exeron EDM 312 MF20 and an Exeron HSC 500 iTNC530 before they decided to implement a fully automated processing system with the goal of achieving higher productivity and increased value. The plan involved exchanging the existing EDM312 MF20 for an exeron EDM313 MF30 and an exeron HSC600/5 milling machine with a graphite-dust extraction system. An extra-large tool changer, with 90 positions to ensure the shortest possible set-up times, and a lubrication-medium distributor from MHT to ensure the most chip-free work possible adds to it.

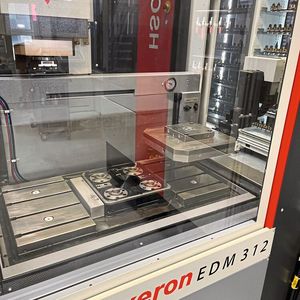

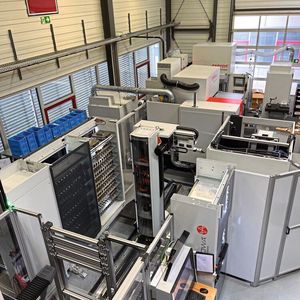

The two new machines are now linked in-line by an Erowa ERD150L loading robot and a Zeiss Duramax Calypso measuring device. These units are networked and operate fully automatically.

The HSC600/5 milling machine is used to produce the graphite electrodes for the EDM313 MF30 EDM machine as well as workpieces for the Mayweg moulds. Although the two machines can be used independently, the integrated system operates as a unit, with the Erowa robot loading both machines, shifting milled electrodes to the EDM unit and unloading finished mould components, which are inspected by the Zeiss measuring device. A “zero-point clamping system” ensures that all workpieces are positioned with micro-precision via a zero-point clamping system.

Gallery

The configuration of all the individual components, and their integration into the overall system, were the sole responsibility of Exeron in Oberndorf, which ensured a smooth set-up process and immediate operational service.

With this fully automated system, Exeron met the goals set by Mayweg with pinpoint accuracy. Production orders for tools can now almost entirely be implemented internally. A significant increase in equipment availability has led to improved productivity. Personnel are no longer required for in-process checks, or reloading and restarting between the individual operations. The required materials are automatically fed to the system by the robotic system, so there are no delay or downtime here either. Manual releases between the processing steps are also eliminated. But Mayweg was not only pursuing quantitative goals. Significant quality improvements, in terms of part accuracy, were also among the goals that have been met with the Exeron system.

High-level automation brings benefits

With this investment, Mayweg has taken a big step towards automation. The introduction of the zero-point clamping system increases workflow flexibility and saves time in external set-up and work-priority changes. External pre-setting reduces non-productive time at the machining centres, and new workpieces and electrodes can be measured during production. Quality measurement ensures accuracy and allows work to be released without manual intervention. Digital chip identification on electrodes and platens avoids errors. A production-management system order priorities, workflow management, dimension handling and data management, and provides a status overview of the entire cell and its components. Intelligent process integration via the handling system ensures that the platens and electrodes are fed to all systems with pinpoint accuracy.

Successful cooperation

Thanks to the new, modern equipment, full air-conditioning and integrated quality measurement of the electrodes and workpieces, the machining quality and consistency were significantly improved. The new machining centre clearly optimized surface structures.

Employees have seen big changes: Today, their work mainly involves advance planning of the upcoming machining operations because the parts are produced almost independently on the new system. “The system has to be highly productive ... 24/7” was how Bernd Jannack, managing partner at Mayweg, formulated their original goal. And that is how it is now, he says. If any issues arise, Exeron’s service is there quickly and reliably, with response within a few hours. Many challenges can also be solved quickly, and without complications, by telephone or by remote maintenance. “If that is not enough”, says Christopher Seeboth, project manager for the cell project at Mayweg, “a technician can be on site within 24 to 48 hours. This is a big plus with Exeron.”
