Germany - Increasing cost pressures and fiercer competition are driving toolmakers to embrace new concepts such as Tooling 4.0 and to industrialise their operations to reduce idle and lead times by limiting the number of variations in tool components and processes.

Related Vendors

Toolmakers must face the digital transformation and re-align their business accordingly.
Toolmakers must face the digital transformation and re-align their business accordingly.
(Source: © ake1150 /

As the suppliers of tools and moulds for series production processes, toolmakers around the world constantly seek to make improvements in order to deliver a high level of quality in a short period of time and at competitive prices. In the past, tools were made by craftsmen and designed and manufactured as unique pieces of art. This high level of dedication and focus on quality was needed to ensure reliable series production processes. Since then, the demand for tools has grown concurrently with the increasing number of products and product variants.


Other developments include the stronger focus on reducing toolmaking costs and greater collaboration with national and international suppliers to profit from lower costs. In order to meet these diametrically opposing demands of high-quality tools at competitive prices and short lead-times, toolmakers have improved their value creation processes, applying concepts from other industries. This article will give an overview of the two major development phases of improvement, which are described as “Industrialisation of Toolmaking” and “Tooling 4.0”.

Improvements in time and quality in toolmaking have always been enabled by advancements in machining technologies such as milling, turning, eroding and grinding. With this equipment, manufacturing times could be reduced and the necessary tolerances machined more reliably. Additional automation equipment like CNC control units as well as tool and workpiece changers increased the efficiency of the tool manufacturing process even further. Between 2004 and 2015, German toolmakers improved the average runtime of their milling machines by 38% to 3,547 hours per year. In the same timeframe, the share of machining hours per operator hour was increased by 72% to a value of 1.67.

Despite these technological improvements, the lead-times of new tools and maintenance orders were only slightly improved. Long idle times between process steps were the result of an uncoordinated shop floor with non-systematic planning and steering concepts of orders. Alongside these isolated measures, new and holistic production concepts were needed; here, the industrialisation of toolmaking had a major impact.

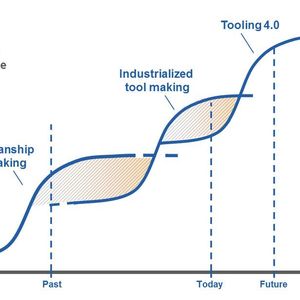

Development phases in toolmaking

The industrialisation of toolmaking was a radical development with the objective of using standardisation and specialisation to reduce lead-times while sustaining tool quality. It completely changed traditional toolmaking processes. The principles of industrialisation have already proven themselves in the fields of mass and series production, particularly in the automotive industry. The ideas of Taylor, Ford, Toyota, Womack and Jones helped the automotive industry to increase their output and at the same time reduce production costs. For the single and small-series production of tools, the concepts had to be modified in order to meet their specific requirements. Over time, new challenges and opportunities for toolmakers have arisen.

Three primary challenges have been identified: social change in the workforce, a stronger internationalisation of customers and production sites as well as growing digitalisation. Although the concepts of industrialisation still help toolmakers to improve today, a further development phase will be needed to face new challenges. Similar to current developments in the automotive sector, Industry 4.0 can be a role model for the toolmaking industry. WBA Aachener Werkzeugbau Akademie has developed a Tooling 4.0 concept thanks to their experience with consulting and research projects in the toolmaking industry.

Tooling 4.0 focuses on adapting the concepts of digitally enhanced products and services as well as building up organisational knowledge by collecting and analysing data of value creation processes. For many aspects of Tooling 4.0, the concepts of industrialisation in toolmaking are a prerequisite for further improvements. The status quo of toolmakers from different countries varies to a large degree. First-class toolmakers in Germany already implement aspects of Tooling 4.0, while the concepts of industrialisation in toolmaking would also benefit a large share of toolmakers. These two concepts will be described in more detail.

Industrialised toolmaking

The primary objective of industrialisation in toolmaking is to reduce idle and lead-times by limiting the number of variations in tool components and processes. To benefit from the standardisation and subsequently higher specialisation in single process steps, a basis of focus and collaboration is needed. Toolmakers must identify their core competencies in the value creation process and focus their resources in the area of complex 5-axis hard milling, for example. To be cost-efficient and manufacture and assemble complete tools, collaboration with other toolmakers and suppliers with complimentary core competencies is necessary.
