Toolholding that’s fit for purpose

YMT Limited Toolholding that’s fit for purpose

18.03.2015Editor: Briggette Jaya

UK – More than a decade ago, Diebold introduced the ﬁrst contact-shrink unit. That was a milestone in modern shrink-fit technology and the company built on the lessons learned to develop inductive shrink units, chiller units, and integrated tool-settings systems.

Related Vendors

YMT Technologies Ltd.

HASCO Hasenclever GmbH + Co KG

AMETEK GmbH Division Creaform Deutschland

Meusburger Georg GmbH & Co. KG

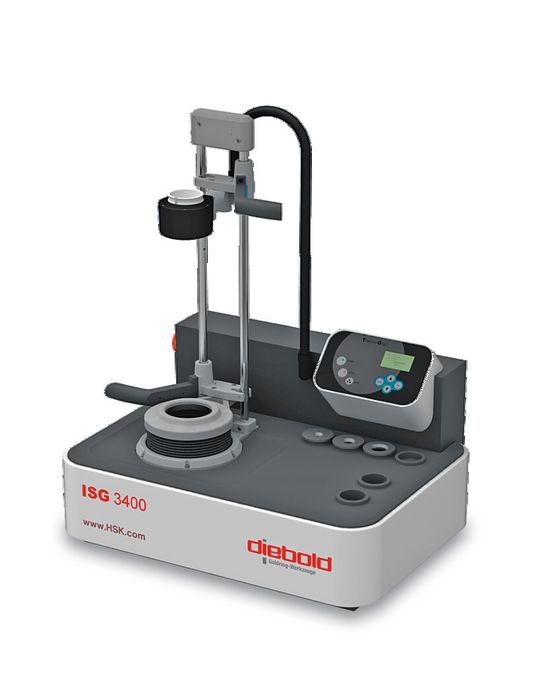

The self-contained shrink-fit unit can shrink-fit carbide shank tools from 3 to 32 mm diameter and HSS shank tools 6 to 32 mm diameter, and have been designed so the operator does not have any contact with hot tools.
(Source: YMT)

It is easy to think of shrink-fit technology as a relatively new technique. However, open-flame heating has been used to shrink-fit parts together since before the industrial revolution. The ﬁrst documented application was to heat and then shrink iron rims onto wagon wheels.

Measuring device allows speedy multi-tasking

This method was then applied to smaller items, such as heating rings or bearings onto shafts. Eventually, open-flame units were developed to heat shrink-fit chucks using carbide tooling. These systems, as well as the ubiquitous oxy-acetylene torch, remain in use in some workshops to this day.

Hot-air shrink units replace open-flame designs

For safety reasons, hot-air shrink units were offered as an alternative to the open-flame designs. The main drawback of hot air was the time required to heat a chuck sufficiently to change a cutting tool. It offered the opportunity to automate the process to some degree, but this didn’t compensate of the long cycle time.

In 1992, Tooling Innovations in California obtained a US patent for shrink-fit tooling, and for an inductive shrinking unit. The machine that was introduced was very powerful, but also very large. That unit developed high power in a relatively undeﬁned area, which resulted in overheating of the cutting tools.
