Italy/Germany — With HRS cool Evo, Oerlikon HRS flow presents a further development of the HRS cool hydraulic cylinder system for hot runner injection moulding, which, thanks to its sophisticated temperature management, does not require active liquid cooling of the actuation unit.

Related Companies

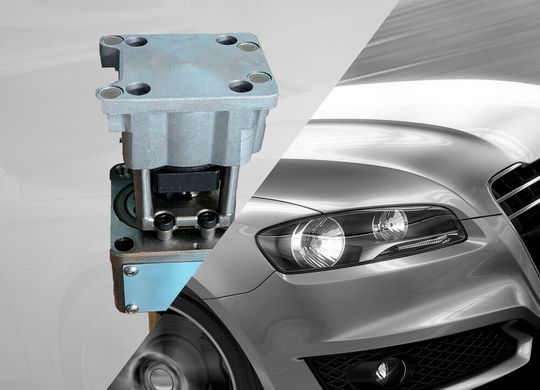

The design optimisation of the uncooled HRS cool Evo hydraulic cylinders from Oerlikon HRSflow extends their process window to higher processing temperatures.
The design optimisation of the uncooled HRS cool Evo hydraulic cylinders from Oerlikon HRSflow extends their process window to higher processing temperatures.
(Source: Oerlikon)

Thanks to a further reduction in the heat flow between the hot runner and the mould plate, HRS cool Evo version can now be used at higher mould temperatures than its predecessor system HRS cool, which was presented in 2019.

Oerlikon HRS flow has constructively optimised the heat balance of the cylinder. As a result, this advantageous technology, which is mainly used in the production of interior and exterior automotive parts, is now also available for previously temperature-critical applications. Despite the significantly improved heat transfer, HRS cool Evo — in both the basic and the damped version — fits into the mould cut-outs of the fully compatible hot runner systems of the P, M, G and A series from Oerlikon HRS flow.

HRS Cool Evo allows to reducing the heat transfer from the manifold heaters to the oil of the actuator thanks to the geometry optimization of the contact elements between manifold and cylinder. In contrast, the highly efficient heat dissipation to the cold clamping platen takes place via a cover whose large, flat surface is made of a material with very high thermal conductivity that works as thermal bridge. An integrated height adaptability ensures maximum efficiency even without accurate seat tolerances.

HRS Cool Evo enables savings in costs and maintenance, because the elimination of liquid cooling reduces the number of components. The connection of cooling circuits is equally eliminated, as is the problem of clogged cooling ducts or the degradation of hydraulic fluids. The effort required to install and remove this uncooled system is also reduced, because thanks to the special lock, the needles can remain in the nozzle during mounting and dismantling. And the sophisticated insulation concept, which ensures an optimally uniform temperature distribution along the entire hot runner system, supports the production of components with particularly high quality.
