Floyd Automatic introduce crazy cool Micro End Mills

Micro machining Floyd Automatic introduce crazy cool Micro End Mills

04.03.2023 Source: Floyd Automatic Tooling

Related Vendor

Now available from Floyd Automatic Tooling is the new Crazy Mill Cool Micro series of micro end mills from Mikron Tool. With micro machining applications increasingly commonplace, this high-performance end mills could be a game changer for the industry.

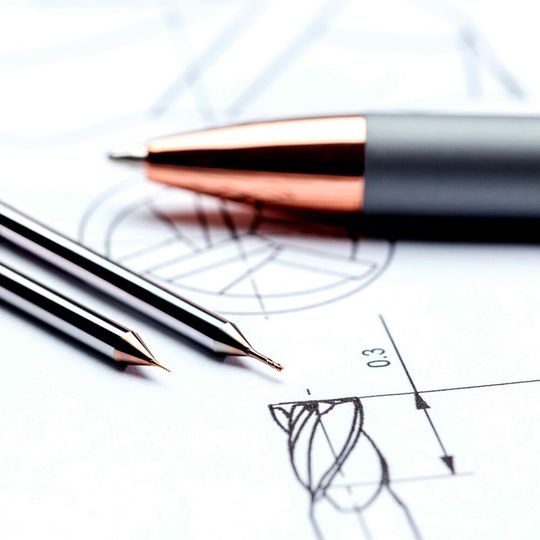

Mikron Tool has successfully transferred high-performance cutting tool geometries to micro dimension end mills.
(Source: Floyd Automatic)

For the first time, engineers at Mikron Tool have successfully transferred high-performance cutting tool geometries to micro dimension end mills. Designed for operations as diverse as side-milling, helical interpolation, slot milling and drilling, the Crazy Mill Cool Micro is available with 3 or 4 flute options with diameters from 0.2 to 1 mm with effective cutting lengths of 3XD and 5XD. The high quality micro-grain carbide grade permits the grinding of special filigree geometries that maximise strength and performance, minimising the potential for tool breakages — especially when machining challenging materials.

The combination of innovative geometries, the high quality carbide grade and a patented new cooling concept deliver double the tool life performance and three times higher productivity levels than rival product lines. The integrated through coolant channels guarantee unparalleled levels of cooling. Furthermore, with a cooling channel for each of the three or four flutes — swarf evacuation that can be an issue in micro machining applications, is now a thing of the past.

The unique micro-machining S and SX geometries, patented cooling channels and Mikron’s Exedur SNP coating technology provide high flexibility for end users. The micro-machining experts have also introduced coating technology that prevents the loss of sharp edges that can be so critical in micro machining applications. The new arrivals are available with an S geometry for machining stainless, steel, cast iron, non-ferrous metals and titanium alloys whilst the SX geometry type is suited for particularly challenging materials such as inconel, monel, and CoCr alloys.

(ID:49231504)
