Kennametal E-Bore fineboring system

Editor: Steffen Donath

Kennametal has introduced a new line of digital-ready fine boring tools that make precision adjustment easy, enabling more productive, predictable, and accurate boring.

Related Companies

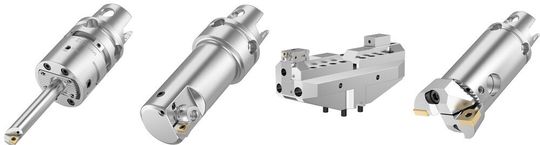

E-Bore Tool types from left to right: E-Bore Universal, E-Bore Fine Boring, E-Bore Bridge Tool. E-Bore Twin Cutter.
E-Bore Tool types from left to right: E-Bore Universal, E-Bore Fine Boring, E-Bore Bridge Tool. E-Bore Twin Cutter.
(Source: Kennametal)

The E-Bore Fine Boring System consists of cutting units to cover a diameter range from 6 to 1020 mm (0.236" to 40.157") and an optional digital display that makes precision adjustments as simple as turning a screw — and costly mistakes a thing of the past.

“For many workpieces, the boring operation is often the final step, and a simple mistake can lead to scrapped parts. The Kennametal E-Bore fine boring system does away with the traditional ‘count the graduations’ approach to boring and reduces costly mistakes,” said Global Product Manager Marcus Paul. “We’ve found there’s tremendous operator acceptance due to its simplicity and ease-of-use. And because the same E-Bore digital device can be used across multiple types of tools and on various machines, it´s easy on the tooling budget as well.”

Offering no-mistake adjustments and accuracy to within 2 microns, Kennametal’s E-Bore digital device is an optional part of the Kennametal Digital Boring System

With Kennametal’s digital E-Bore digital device, dialing in a tight bore and losing count of how far the adjustment screw was turned is a thing of the past. With an adjustment accuracy of 0.002 mm (0.00008"), the chip and coolant-resistant device contains a glass-scale that keeps track of boring bar movement. Simply snap it in place, turn the boring head’s adjustment screw by the desired amount, and the tool is ready for the next boring operation.

With E-Bore, there is no need to remove the boring head from the spindle for adjustment nor to count graduations or take notes. Concerns over backlash and movement due to overtightening of the boring head’s locking screw are a thing of the past, as are endless test cuts and “sneaking up on the bore”. The result is less scrap, less downtime, and faster setups. The device shuts off automatically after 30 seconds and provides more than 5,000 adjustments between battery changes. And if you forget to remove the boring head before turning on the spindle, a ball and spring clamping mechanism releases the display automatically at 500 RPM, preventing potential injuries.
