Clamping stations with compact dimensions

| Editor: Steffen Donath

The compact miniature clamping stations Schunk VERO-S NSL mini 100-25 have high pull-down forces, a high rigidity, and are completely sealed.

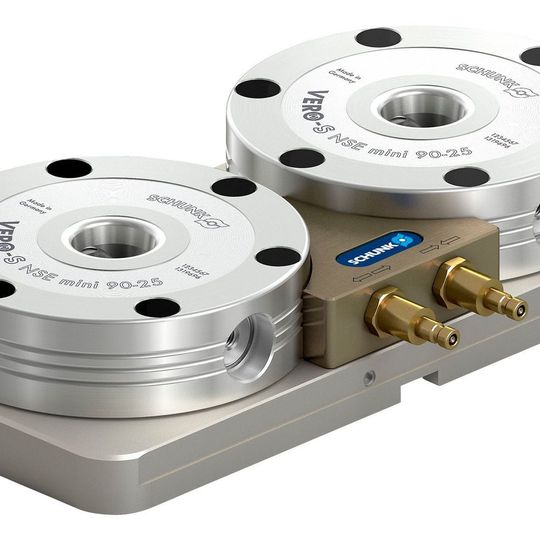

The compact miniature clamping stations Schunk VERO-S NSL mini 100-25 have high pull-down forces, a high rigidity, and are completely sealed. (Source: Schunk)

The miniature clamping stations from the Schunk Vero-S NSL mini 100-25 series ensure high clamping forces in a compact design. The powerful 1-way, 2-way, and 4-way clamping stations are particularly designed for the requirements of modern small parts production.

The mini clamping stations lock in a self-retaining and form-fit manner via spring package. They do not consume any energy when actuated. The corresponding quick-release couplings for opening by compressed air, or for actuating the turbo function are located in an elevated position, and are therefore particularly easy to reach without restricting the accessibility of the workpieces. Large contact surfaces between the clamping slides and pins minimize surface pressure in clamped position thereby wear on clamping modules is reduced. To increase the service life, all the functional parts of the clamping modules, such as the base body, clamping pin, and clamping slide, are made of stainless steel. The other components of the clamping stations in turn are chemically nickel-plated or hard-anodized, and are therefore also rust-proof.

The used modules are completely sealed and prevent the ingress of chips or dirt into the module interior and causing interference. At the same time, a revised drive increases the pull-down forces: Each clamping module achieves a pull-down force of 6,000 N due to a patented dual stroke system and activated turbo function

Well-armed clamping technology for the smart factory

Schunk / AMB

Well-armed clamping technology for the smart factory

24/07/2018 - At AMB, Schunk will showcase clamping devices and grippers for monitoring clamping forces, temperature and vibration characteristics in real time. read...
