Ecosystem for 3D printing Additive Manufacturing: So much more than the printer

Source: ID-Tech-Ex

Related Vendors

The core element of additive manufacturing has always been the 3D printer. However, with so much focus being put on 3D printers, it can be easy to lose sight of the many other important sectors that make 3D printing, especially industrial additive manufacturing, possible.

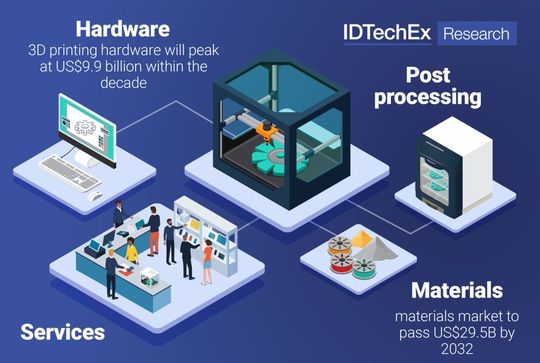

3D printing takes an entire ecosystem, including materials, software, post-processing, quality assurance, services, specialised training and more.
3D printing takes an entire ecosystem, including materials, software, post-processing, quality assurance, services, specialised training and more.
(Source: ID-Tech-Ex)

The 3D printing industry has been built on a foundation of different printer technologies, each with its own strengths and weaknesses, abilities and limitations, and most compatible applications. In fact, in ID-Tech-Ex's latest “3D Printing and Additive Manufacturing 2023-2033: Technology and Market Outlook” report, over thirty different 3D printing technologies were analyzed on technical parameters like build rate, resolution, price, etc., to establish their individual performance amongst other printing technologies. Importantly, the unique characteristics of each technology type help expand the 3D printing industry by making new applications accessible for additive manufacturing.

But it takes an entire ecosystem, including materials, software, post-processing, quality assurance, services, specialized training, and more, for 3D printing to be utilised in high-value industries and applications. It is the maturation of all aspects of AM that is driving its increased adoption by end-users.

Materials

Historically, 3D-printed parts have struggled to compete with conventionally manufactured parts (i.e. machined parts, injection-molded parts, etc.) in part because of their poorer mechanical and materials performance. Therefore, significant effort is being expended by 3D printing companies (including materials suppliers like BASF and Arkema) to address these shortcomings from a materials point-of-view. One of the most popular approaches to improve performance is reinforcements like carbon and glass fibers; a more advanced category of reinforcements is nanocarbon fillers like graphene and carbon nanotubes, which are beginning to be incorporated into commercial 3D printing materials. Another approach is making high-performance but difficult to process materials like high-temperature thermoplastics and foams more printable. Important to recognize is that different printing technologies require different improvements in materials to optimize overall performance. Further discussion on the developments in the 3D printing materials market can be found in ID-Tech-Ex's report “3D Printing and Additive Manufacturing 2023-2033: Technology and Market Outlook”.

Post-Processing

Post-processing refers to the step(s) taken after 3D printing to finish manufacturing a single part. It is often the last or second-to-last step in the additive manufacturing process (where the final step may be quality assurance). Post-processing for AM includes a collection of techniques; some are specific to AM (i.e. support removal, depowdering), while others are used in other manufacturing processes (i.e. surface finishing, metal annealing treatments). Some post-processing techniques are required after printing, while others are optional but often done to improve certain aspects of the printed part (i.e. mechanical performance, appearance, etc.).

As 3D printing is increasingly used for medium-to-high volume parts, post-processing is becoming increasingly essential to make printed parts suitable for end-use applications. To address this need, several specialized AM post-processing companies, like Dye Mansion, AMT, and Post Process Technologies, are producing post-processing equipment capable of handling higher volumes of parts. Such machines are made to handle high numbers of parts and to be as automated as possible in order to reduce the overall production time for 3D printed parts. The rapid growth of such companies in the past five years, plus their increasing partnerships with established printer manufacturers, makes post-processing an interesting AM-related sector to monitor over the coming decade.

Software

As a digital manufacturing technique, 3D printing incorporates software at every step of the production process. To help expand AM's reach with end-users, the most popular focus of 3D printing software development is to make AM adoption easier for end-users. For example, companies like Xerox are developing software tools to advise end-users on which parts are most suitable for a switch to 3D printing; such software attempts to streamline the adoption process by removing the need for any engineering consulting to identify the best places for AM in an organization. At the design stage, software start-ups like nTopology and Para Matters are producing tools to make it easier to create complex geometries for 3D printing, whilst others like Ansys produce simulation software to test the 3D printed parts' performance even prior to manufacture.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy.

Unfold for details of your consent

After printing, inspection, and quality assurance software compare 3D scans of the manufactured part to the original 3D model to identify deviations and defects, a critical step for parts used in highly regulated industries like aerospace and healthcare. Across the entire production process, workflow management software, like those offered by 3Yourmind, AMFG, and AM-Flow, is needed to monitor the status of any given print project from ordering to final shipments; this becomes particularly essential when handling large volumes of prints, which many 3D printing companies aspire to do.

In other words, streamlined and easy-to-learn software is needed at every step of the 3D printing production process to enable increased adoption of AM. This need is recognized across the industry, particularly by investors; around 125 million dollars had been invested into software 3D printing-related companies in 2021. Additionally, two of the top ten biggest fundraising rounds across the AM industry in 2021 were software companies — nTopology (65 million dollars in Series D) and Oqton (40 million dollars in Series A, pre-acquisition by 3D Systems). ID-Tech-Ex expects this investment trend to continue into 2022, as 21 percent of private funding going into AM companies in H1 2022 went into 3D software companies (up from 2021).

Services

Decades of industry following the same business strategy have exposed the inherent difficulties in selling printers to end-users. The most important barrier to entry is that customers need to find the budget for expensive printers and consumables that cost hundreds of thousands of dollars and hundreds of dollars per kilogram, respectively. Where purchasing a 3D printer is uneconomical or a hard sell for customers, service providers serve an important role in providing access to 3D printing without requiring end-users to have the technical know-how or pricey equipment and materials needed to operate AM printers.

Of note here is the increasing number of service providers with their own proprietary printing technology. Rather than selling the printers using their proprietary technology like traditional 3D printer manufacturers, they have chosen a different business strategy where they keep their proprietary printing technology in-house to produce parts for customers. In this way, in-house production companies using their own proprietary technology like 3Deo, Holo, and Bond3D are like vertically integrated OEMs. Through this business model, such companies circumvent many of the classic barriers to adoption that comes with commercializing a new printing technology. The growth coming from service providers like those mentioned is contributing to the expansion of a very important portion of the 3D printing ecosystem, which reduces the barriers to entry for end-users exploring AM.
