Temporary Corrosion Protection

Surtec Temporary Corrosion Protection

2022-08-24 From Reiner Grün

Related Vendors

SurTec Deutschland GmbH

HASCO Hasenclever GmbH + Co KG

BORIDE Engineered Abrasives

AMPCO METAL Deutschland GbmH

According to the World Corrosion Organization, the economic damage caused by corrosion worldwide amounts to more than € 2 billion annually. How can products be protected against corrosion?

The influence of corrosion protection does not start directly after a cleaning process, but already during the construction of the parts.(Source: Public Domain / Pixabay) — The influence of corrosion protection does not start directly after a cleaning process, but already during the construction of the parts.
(Source: Public Domain / Pixabay)

DIN EN ISO 8044 defines corrosion as the reaction of a metallic material with its environment, which causes a measurable change in the material and can impair the function of a metal component or an entire system. In most cases the reaction is of an electrochemical nature, in some cases it can be of a chemical or metal-physical one. The standard defines 37 different types of corrosion. The best-known examples are surface corrosion, crevice corrosion, contact corrosion, pitting corrosion, intercrystalline corrosion, stress corrosion and condensation corrosion. Corrosion causes damage running into billions, but for thermodynamic reasons it cannot be prevented in principle, it can only be delayed.

Gallery

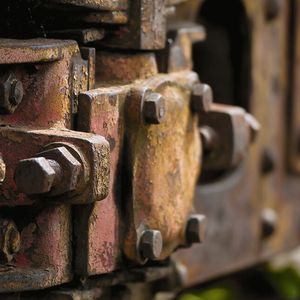

Corroded parts.(Source: Public Domain / Pixabay)

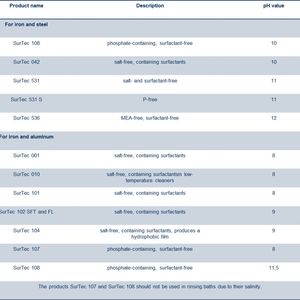

Examples of liquid silicate-free cleaners with temporary corrosion protection.(Source: surtec)

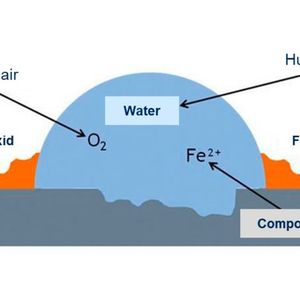

Schematic representation of corrosion.(Source: surtec)

Different Types of Corrosion Protection

Active Corrosion Protection

Corrosion is reduced from the outset by selecting or combining suitable materials (e.g. certain stainless steels). This method often fails due to economical (expensive materials) but also due to technical reasons (lack of mechanical properties). Corrosion protection planning and design also ensures active corrosion protection, for example by avoiding gaps, joints, direct contact between different metals (keyword: contact corrosion, contact elements) as well as the separation of ferrous and non-ferrous metals during production. The same applies to storage and transport conditions — constant temperatures, low humidity, avoidance of condensation and contact with aggressive media (salt, hand perspiration etc.) as well as the choice of suitable packaging are important factors.

Passive Corrosion Protection

This is generally defined as the application of a separating layer. In the case of iron and steel, these are usually galvanically applied metallic coatings (e.g. zinc, nickel, zinc alloys), organic coatings (e.g. paints, varnishing), as well as non-metallic coatings (e.g. enamelling, gas nitriding, burnishing and phosphating, but with subsequent oiling or varnishing).

Temporary Corrosion Protection

The aim of temporary corrosion protection is to achieve a sufficient corrosion protection effect during the production process, storage and transport of the components. It includes oil-containing and watery media. The maximum corrosion protection period is approximately two years, depending on the application. The durability strongly dependents on the ambient conditions as well as the type of corrosion protection: it increases significantly in comparison with watery media to those containing oil (e.g. Surtec 590). In the case of oil-based corrosion protection agents, removal from the surface of the part is more difficult than in the case of watery media, which is why these are no longer permitted in some areas.

Temporary Watery Corrosion Protection

In most cases, these materials are adducts of fatty acids and amines. They are salt-free and create a mildly alkaline to alkaline environment on the component surface. Either the cleaner itself already contains a temporary corrosion protection or the application takes place in the rinsing baths, allowing the corrosion protection to dry on the surface. Subsequent processes such as hardening are not negatively affected, as the corrosion protection evaporates completely at temperatures above 200 °C. The corrosion protection is then completely removed.

Depending on the material, storage conditions and water quality, corrosion protection times of two weeks to six months can be achieved. Requirements for good watery storage corrosion protection:

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Preparation in demineralized water (deionized water)

Cleaning and rinsing baths <10 mg/I Chloride

Fast and complete drying after cleaning or passivation, vacuum drying for complex geometries

Parts that go directly to assembly must be stored dry and in dry ambient air or packed cooled in corrosion protection paper.

This is particularly important in the summer months, which are characterized by warm air with high humidity.

In summary, it is safe to say that an influence on corrosion protection does not start directly after a cleaning process but already during the construction of the parts. This shows how important it is to consider the entire manufacturing process right through to transport. In this way, problems can be detected promptly, complaints regarding corroded parts can be minimized, or even completely avoided.

This article was first published by MM MaschinenMarkt

(ID:48547169)
