Drilling small holes Micro precision drills for challenging materials

Source: Gühring Reading Time: 2 min

Related Vendors

Tool manufacturer Guhring has further extended its range of drills with the arrival of its new Micro Precision Drills. Developed for the precision drilling of challenging materials, the new Micro Precision Drills deliver rigidity, stability, performance and precision when drilling small holes.

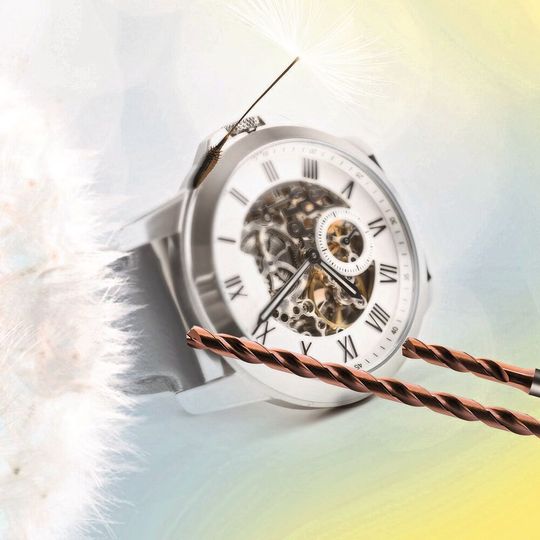

The concave cutting edge of Gühring’s new micro precision drills significantly improves chip evacuation.
The concave cutting edge of Gühring’s new micro precision drills significantly improves chip evacuation.
(Source: Gühring)

Manufactured from a sub-micron ultra high-quality carbide substrate, the new micro precision drilling line from Gühring is ideal for processing challenging materials such as stainless steel, heat-resistant steels, titanium and titanium alloys, Inconel, Hastelloy, Monel, copper, brass and bronze alloys. Until now, this range of materials has proven particularly difficult to drill — especially in small diameters from 0.5 to 3 mm. What enables the new Guhring Micro Precision Drills to process this wide range of materials is the remarkably strong carbide substrate and the innovative geometry. The next-generation geometry technology incorporates a ground facet point, concave cutting edge and web thinning — all in one drill.

This combination delivers astounding performance as the special facet point increases the cutting data, so end users can process holes at higher speeds than ever before. Additionally, the concave cutting edge significantly improves chip evacuation – this is critical for small hole drilling where swarf clearance can cause performance issues. The new drills also incorporate Guhring’s next-generation coating technology that has exceptional heat resistance. This impervious coating technology maximises tool life and performance even when drilling the most difficult of materials, retaining edge performance for prolonged periods under the most demanding of conditions.

The h7 diameter tolerance Guhring Micro Precision Drills are available in drilling depths of 3, 6, 10, 15, and 20XD. The precision drills are available in 0.05 mm increments from 1 to 3 mm with additional diameter increments in the range for pre-threading and specialist hole requirements. To maximise the performance of the new series, the drills are supplied with internal coolant channels that further enhance the swarf evacuation process and eliminate chip re-cutting — underpinning the increased cutting data credentials of the new drills. For holes as small as 0.5 diameter, the range also includes a 3XD variant without through coolant. Like the through coolant drills in the range, the 3XD without coolant is offered in 0.05 mm increments up to 3 mm. This range is perfect for applications and machine tools where the machine tool doesn’t provide through coolant, as the solid carbide drills further extend the rigidity of the series on difficult applications.
