Lifting plate with maximum closing force

Valve Gate Systems Lifting plate with maximum closing force

27.01.2022Source: Press release

The Power Move lever operated lifting plate is an integral part of the hot half in Meusburger's range of valve gate systems. Matched to the sizes in the plates range, various standardised the units are available, which are customised according to the individual requirements. The arrangement of the nozzles can be freely configured.

Related Vendors

Meusburger Georg GmbH & Co. KG

HASCO Hasenclever GmbH + Co KG

BORIDE Engineered Abrasives

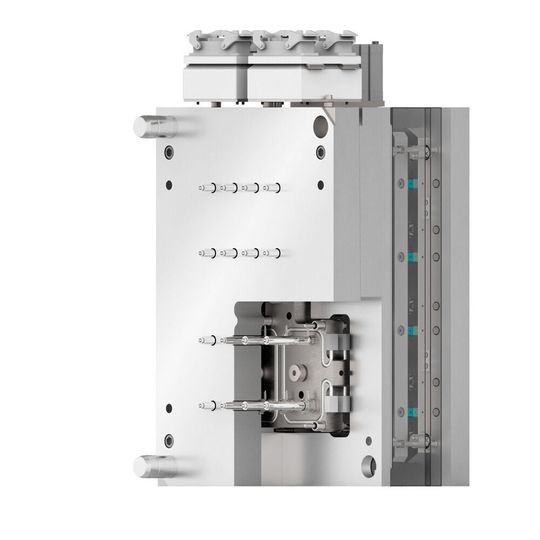

The Power Move lifting plate from Meusburger is a cleanroom compatible and self-lubricating pin actuation system. The lever mechanism ensures ideal force and speed for the opening and closing of the pins during the injection moulding process. With no additional control system necessary, consistent high quality of injection moulded parts is ensured.

The lifting plate offers maximum closing force and low speed when plunging the pins into the gate. It increases speed when opening the valve pin and features minimal force loss compared to other actuation mechanisms. The lifting frame is mounted on roller bearings, with rolling friction ensuring 20 times lower friction than sliding friction. The Power Move lifting plate enables stepless height adjustment of each individual valve pin. Further advantages include:

Shutdown of individual pins without opening the mould

Close spacing of pins possible

Smallest cavity distance and high number of cavities

Ideal force / speed ratio for the pin movement

Standardised design matches the Meusburger range of plates
