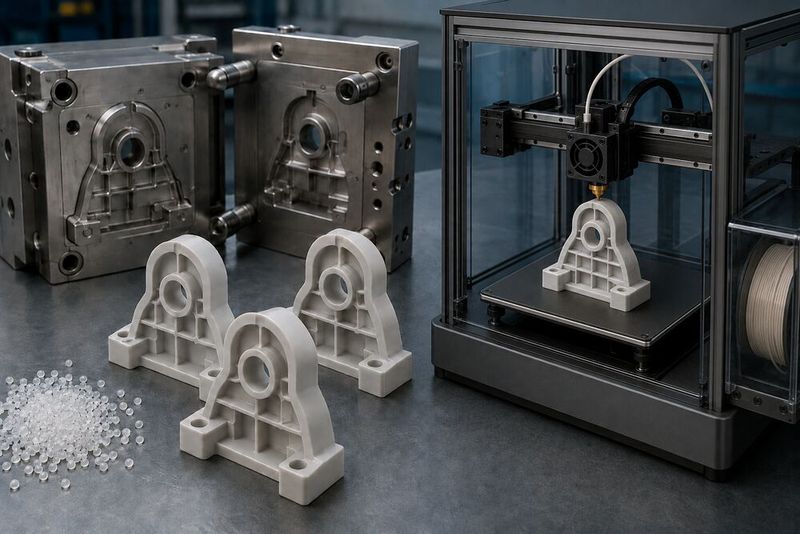

Injection moulding and FDM 3D printing offer different advantages when producing polypropylene parts. A theoretical study examines how mechanical requirements, production volumes and costs determine which process is the better choice.

A new theoretical study comparing two of the most widely used polymer manufacturing methods — injection moulding and FDM 3D printing — finds that neither process is universally superior, and that the right choice depends on a carefully considered combination of mechanical requirements, production volume, and budget constraints, with important implications for how engineers and manufacturers approach material selection and process planning for polypropylene parts.

Polypropylene is one of the most widely used engineering plastics in the world, valued for its chemical resistance, light weight, and versatility across industries ranging from automotive and packaging to medical devices and consumer goods. When it comes to manufacturing parts from polypropylene, two processes dominate the industrial landscape: injection moulding, a high-pressure technique in which molten polymer is forced into a precision mold and allowed to solidify, and Fused Deposition Modeling (FDM), a form of 3D printing in which the material is deposited layer by layer from a heated nozzle to build up a three-dimensional shape. Both methods are mature, commercially available, and capable of producing functional polypropylene components — yet their mechanical outputs, economic profiles, and practical strengths differ considerably. Despite the growing adoption of 3D printing across manufacturing sectors, there has been limited structured effort to place these two processes side by side in a single comparative framework that addresses mechanical performance and production economics together. This study fills that gap.

What the analysis revealed

Rather than conducting new laboratory experiments, the researchers based their analysis on technical property data published by material and equipment manufacturers, organising it into comparative graphs and tables covering tensile strength, flexural strength, impact resistance, and softening temperature — the four properties most relevant to assessing whether a part will hold up under the mechanical and thermal demands of real-world use. On every mechanical measure, injection-moulded polypropylene outperformed its 3D-printed counterpart. The authors attribute this to two process-level factors: the high pressures involved in injection moulding produce a denser molecular structure with a degree of preferred molecular orientation that strengthens the finished part, while FDM-printed parts are inherently weakened by the boundaries between each deposited layer — known as interlaminar discontinuities — which act as structural weak points under load.

From a thermal standpoint, injection-moulded parts similarly showed higher softening temperatures, making them more suitable for applications where elevated operating temperatures are a factor. The economic analysis, framed within the context of the Brazilian manufacturing market, told a more conditional story. Injection moulding carries a substantial upfront investment, dominated by the cost of fabricating the precision mold itself, which can run to tens of thousands of reais for a complex part. This fixed cost is only recovered — and ultimately made cost-effective — when spread across large production runs, at which point the unit cost falls dramatically. 3D printing, by contrast, requires no tooling investment and can produce a single part as economically as it produces ten, making it the financially rational choice for low-volume production, one-off components, rapid prototyping, and applications where design changes are frequent and the cost of re-tooling a mould would be prohibitive.

No single winner, but a clearer decision framework

The study’s most useful contribution for practising engineers and product developers is the decision framework it implies. The authors argue explicitly that choosing between these two processes on the basis of any single criterion — whether mechanical strength, cost per unit, or geometric flexibility — will regularly lead to the wrong outcome. A part destined for a high-stress structural application in a long-production-run consumer product is almost certainly best served by injection moulding, despite its higher entry cost. A custom bracket, a prototype component being tested before final design commitment, or a replacement part needed in small numbers on short notice is almost certainly better suited to 3D printing, even if the mechanical properties are somewhat lower than what injection moulding would deliver.

The authors acknowledge that the study’s reliance on manufacturer-supplied data, rather than independently conducted laboratory testing, is a limitation, and that real-world performance can vary depending on specific machine settings, material grades, and operator practice. They position this work as a theoretical foundation and call for follow-up studies that combine empirical mechanical testing with lifecycle cost modelling across a broader range of production scenarios and part geometries. The research was led by corresponding author Harrison Lourenço Corrêa, alongside co-author Gustavo Andreolli do Vale.

The study, “Injection-moulded and 3D-printed Polymeric Parts: A Theoretical Approach to Mechanical Performance and Processing Costs¨, was carried out by Gustavo Andreolli do Vale and Harrison Lourenço Corrêa in the journal, Current Applied Polymer Science.
