Oerlikon HRS Flow at Fakuma 2023 Hot runner systems with a plus in terms of sustainability
At Fakuma 2023, which will take place from 17 to 21 October in Friedrichshafen/Germany, Oerlikon HRS Flow, will be focusing on hot runner systems that enable greater sustainability and efficiency in thermoplastic injection moulding. In addition to future-oriented automotive applications, the focus will be on trendsetting technologies and projects in packaging industry.
A new stack mould, which has been developed for time, material and energy-saving injection moulding of thin-walled, ecologically optimised packaging, could become a visitor magnet at Oerlikon HRS Flow’s stand at Fakuma. The new patent-pending solution, soon available on the market, is equipped with nozzles of the new Xd series from Oerlikon HRS Flow and thus enables high filling pressures for cost-efficient production with continuously high quality. The stack principle supports the use of smaller injection moulding machines. Thanks to a plug-and-play installation, assembly and maintenance are simplified and highly efficient, avoiding long and costly downtime. The new solution is also suitable for processing PCR plastics and sustainable compounds in line with the requirements of the circular economy. The demo tool with the stack mould system is available for customers to try the most challenging polymers for thin-wall packaging applications. Also available at Oerlikon HRS Flow’s Test Lab is the Engel e-Speed 280 IMM-Hybrid solution to manage mainly R-PET, bio-based and compostable polymers, in line with the new EU Packaging and Packaging Waste Regulation (PPWR).
Multi-cavity system for caps & closures

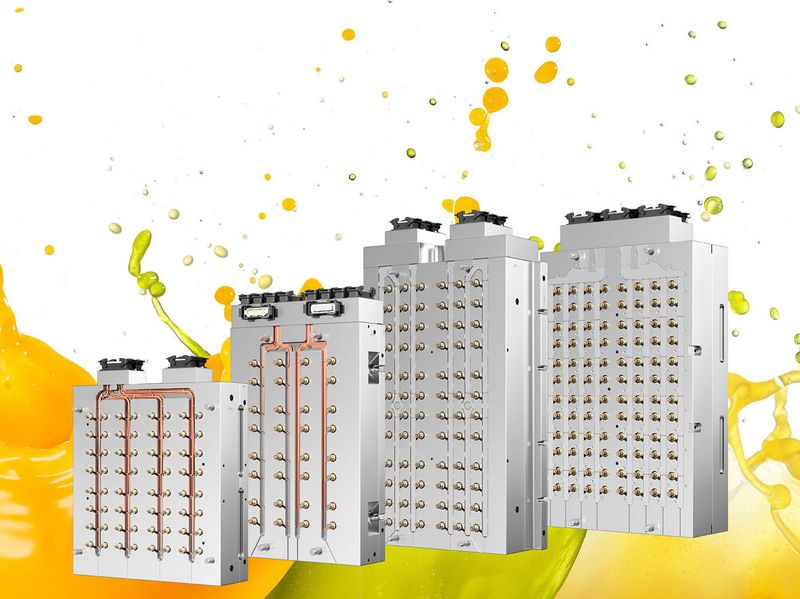

The expertise and know-how of Oerlikon HRSflow in the field of caps & closures will be highlighted through the display of the multi-cavity system designed for the simultaneous high productivity production of 72 caps. Thanks to the new Vf nozzle series, it enables short cycle times of 2.2 to 3.5 seconds while at the same time ensuring maximum process reliability thanks to excellent control and optimum balancing of the filling process. This technical solution, which is equally suitable for carbonated and non-carbonated beverages as well as for liquid and powdered concentrates, meets all the requirements of the new European single-use plastic directive, which makes tethered closures mandatory for all beverage containers up to three litres in capacity.
Specially developed for HDPE caps & closures, the Vf nozzles of the new multicavity line are suitable for part weights from 0.5 g to 8 g. They ensure reliably consistent product qualities, fast colour changes and system restarts. A special nozzle tip enables optimum control in the gate area and improves cycle time. The separate replaceability of the nozzle tip makes maintenance particularly fast and cost-effective. Rheologically optimized hot runner geometries ensure significantly increased reactivity and thus effectiveness of the system. Special inserts minimise the time required for colour changes while keeping reject rates low, which contributes to the sustainability of production even with particularly critical colours.
Flex Flow for demanding injection moulding tasks
In addition to the aforementioned hot runner solutions tailored to the production of packaging, the Flex Flow technology from Oerlikon HRS Flow will be presented at Fakuma 2023 as a sought-after solution for demanding injection moulding tasks. The servo-driven valve gate system is combined with a flexibly programmable control unit. This configuration enables precise and independent adjustment of the stroke and force of the needle position of each individual nozzle during the opening and closing phases of cascading injection processes. Its possibilities are demonstrated by future trends such as back injection of foils, intelligent automotive surfaces and lighting applications. Especially their use in family moulds enables significant cost savings compared to separate injection of the individual parts, even if they are produced in very different sized cavities.
