Vomat/ AMB Filtration technology keeps coolant longer, saves costs

Filtration systems expert Vomat says it provides solutions that filter oils and remove ultra-fine particles that result from grinding, honing, lapping, eroding and other metal working processes.

Related Companies

Vomat GmbH

Oelheld US, Inc

AMETEK GmbH Division Creaform Deutschland

Jongen Werkzeugtechnik GmbH

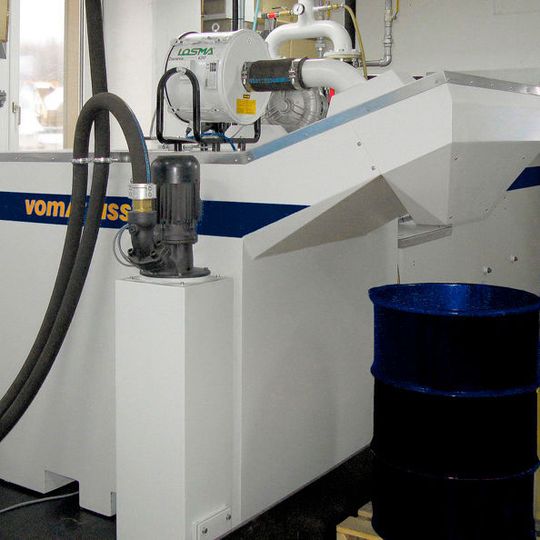

According to Vomat, the company's filtration systems have an automatically controlled, filter-backwash process that is activated only on demand and completely separates contaminated from clean oil. Using a combination of frequency-controlled filter pumps and on-demand filtration, energy consumption is good, being lower than competing units, the company claims.

The high-performance pre-coat filters ensure that clean oil with a purity level of NAS 7 (3-5 µm) is available for the grinding process for long periods. Vomat filtration systems are low-maintenance, compact and available in several sizes, ranging from stand-alone units for single machines to plant-wide central systems. Their modular concept, offering a range of cooling and disposal options as well as the ability to handle the mixed use of carbide and HSS, allows for customised systems. Besides the compact stand-alone units of the FA series (70 to 1200 l flow rate/minute), a new vacuum belt filter UBF will be highlights at AMB, the metalworking trade fair in September in Stuttgart, Germany. Enabling a filtration fineness of 3-25 µm, it is suited for filtering oils and emulsions contaminated with steel, HSS, binders and grinding-wheel particles. The UBF filter requires about 70% less space, while delivering 100% performance, compared to conventional systems, Vomat adds.

Luigi Bandera

Sustainability is the plastics of the future

Vomat will be exhibiting at AMB in Hall 8, Booth A79.
