Version 2020.1 of the Hypermill CAD/CAM suite is now available. Enhancements are to programming tasks, and also to make machining quicker and simpler.

Related Companies

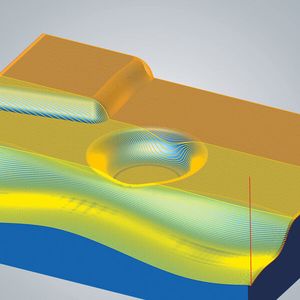

New function for the efficient 3D and 5-axis machining of corner rest material.
New function for the efficient 3D and 5-axis machining of corner rest material.
(Source: Open Mind)

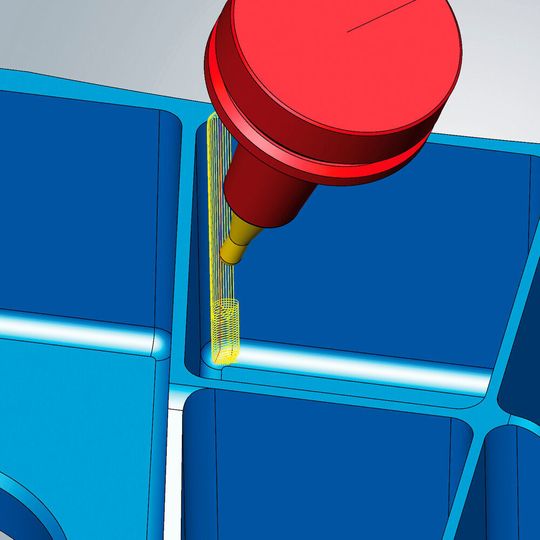

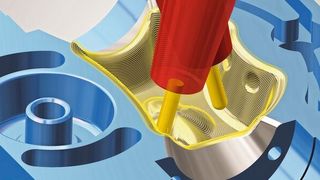

Hypermill 2020.1 provides an innovative approach to reduce rest material in corners after roughing tasks, according to the company. The 3D and 5-axis corner rest machining strategies bring together parallel and Z-level rest machining toolpaths into an optimal process. 5-axis corner rest machining makes indexed machining of difficult to reach corners possible. Automatic inclination selection, simultaneous linking movements, and collision avoidance are available in this process. A further example of increased efficiency is 5-axis turbine blade tangent machining with the conical barrel cutters (also called circle segment or parabolic end mills) co-developed by Open Mind. Top milling with these tools makes higher feedrates possible and allows a more even surface quality to be achieved.

Simplified programming

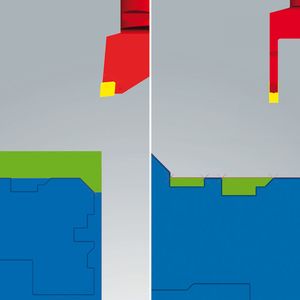

Reducing programming times in line with practical requirements is an important motivation in further developing Hypermill. A new tool path splitting option enables you to automatically split long tool paths according to a specified time or distance. This is essential when cutter life is an issue while machining hard materials. This procedure reduces the need to modify programming jobs into smaller regions or the added risk to manually edit tool paths to account for tool life. Now the Hypermill system can account for tool life and schedule the tool changes. Mill-turn tool paths can also be split to account for tool life or based on cutting technique. Features can be automatically identified by Hypermill to enable inside, outside, face or grooving tool paths.

Gallery

Controlling additive manufacturing

The Hypermill Virtual Machining Center also boasts new features. The Optimizer module — which allows a CAM program to be adapted to the machine’s limitations during postprocessing, for example — now supports the ‘Smooth linking’ function. This automatically optimises all linking movements between the individual operations during postprocessing. This ensures that repositioning and movements are always in close proximity to the workpiece while also being checked for collisions — making programming with the job linking obsolete.

Another new feature from 2020.1 will be that users can independently make small automation tasks a reality with the help of the Hypermill Automation Center. The Hypermill Automation Center serves as both a development and runtime environment. This allows you to automate the joblist creation process and the selection and positioning of the clamping device, as well as define a uniform process for all programmers, Open Mind explains.
