Tech Focus Faster CFRP component manufacturing with ultrashort pulsed laser

From Dr Stefan Janssen,
Martin Reininghaus

Related Vendors

Carbon fiber-reinforced plastics (CFRP) are one of the most versatile composite construction materials. They combine the positive mechanical properties of their constituent parts.

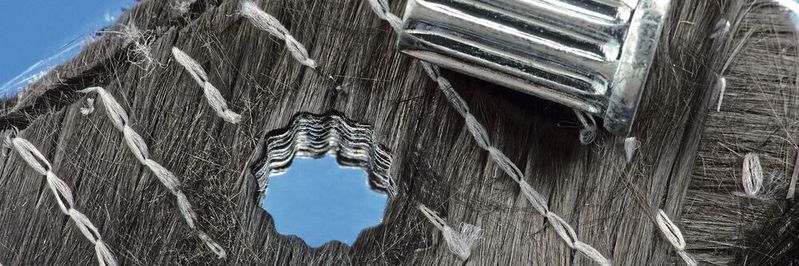

A carbon fiber preform drilled using a USP laser beam with a star-shaped cut-out and a perfectly proportioned metal insert.
A carbon fiber preform drilled using a USP laser beam with a star-shaped cut-out and a perfectly proportioned metal insert.
(Source: Fraunhofer ILT)

In March 2017, the Fraunhofer Institute for Laser Technology ILT embarked on a project with four partners from research and industry. Under the heading “Carbolase — Highly productive, automated and tailor-made just-in-time CFRP component manufacturing”, the project received funding from the European Regional Development Fund (ERDF). Its goal was clear: to help establish the North Rhine-Westphalian SMEs involved in the project as technology leaders and boost their long-term competitiveness on both the national and international stage. The project partners achieved this goal by simplifying the CFRP production process chain and reducing costs.

The conventional way of assembling carbon fiber-reinforced polymer components is to drill holes in the fabricated CFRP module and then glue in metal fasteners such as threaded inserts. Replacing conventional parts with lightweight components requires connections between the CFRP part and the conventional parts that are both detachable and secure.


The Carbolase project pursued a different approach by integrating the fasteners in the textile preforms. The final CFRP is then produced with an additional curing process that includes the fasteners. This can significantly shorten production process chains. However, this method only works if the cut-outs for the fasteners in the textile preform are drilled with extreme precision.

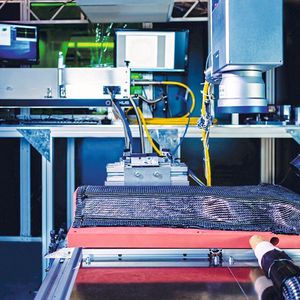

The project team developed a CFRP component manufacturing process that checked all the boxes by opting for a three-pronged approach of CNC cutting, laser processing and automated handling. They combined the technologies for these individual process steps in a single robot cell and automated all the steps in between. First, the preform is created by cutting, stacking and assembling the textiles. Next, an ultrashort pulsed (USP) laser drills high-precision cut-outs in the preforms for the metal fasteners.

The USP laser offers a good alternative to conventional manufacturing — but only if the laser is integrated in the robot cell. In a traditional set-up, the ultrashort pulses would be guided to their destination using mirrors, but this is hardly practical on a robot arm. To tackle this problem, experts from Fraunhofer ILT and Amphos GmbH worked together to develop a novel technology for coupling the USP laser beam in and out. The USP laser source is connected to the scanner on the robot arm via a hollow core fiber.

On September 26, 2019, the Carbolase consortium won the prestigious CAMX Award in the “Combined Strength” category at the Composites and Advanced Materials Expo in Anaheim, California. The CAMX Awards celebrate innovations that promise to have a major influence on the future of composite materials. The jury was particularly impressed by the project team’s decision to integrate the laser right at the start of the process chain in order to reduce the number of costly and time-consuming steps downstream.

Successful results

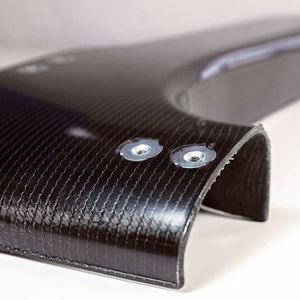

To test the new method and demonstrate its technical feasibility, the project partners produced a demonstrator of a B-pillar component and subjected it to extensive mechanical testing, which it passed with flying colors. In a series of both pullout and torsion tests, the joints produced using the Carbolase method performed better than those in CFRP components produced by conventional means. Thanks to the interlocking connection between the inserts and the matrix material, the CFRP components produced using this new method can withstand a maximum pullout force up to 50 % higher than conventionally manufactured components with glued-in inserts. Depending on the component design, this improvement in mechanical performance offers the potential to reduce overall component thickness and weight.

The Carbolase method offers designers more creative freedom when it comes to defining fastener size and position. This paves the way for efficient mass customisation of CFRP components that goes beyond the current state of the art. sd
