Efficient and collision-free in 5-axis machining

| Editor: Steffen Donath

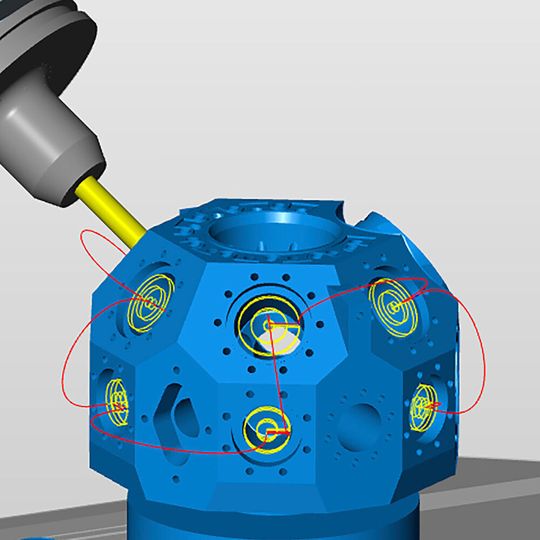

Optimised infeed movements considerably reduce auxiliary processing times.
Optimised infeed movements considerably reduce auxiliary processing times. (Source: Open Mind)

The optional module “Optimizer” for Hypermill from Open Mind aims to improve machining processes via digital twin, promising to calculate the most efficient movements for multi-axis machining.

The Optimizer, an optional module in the Hypermill Virtual Machining simulation solution from Open Mind, enables users to improve NC programs based on the kinematics of the individual machine. The machining process is simulated by using a digital twin. This enables the users to overcome the complexity associated with alternative setup and orientation options in 5-axis machining.

The Hypermill Virtual Machining Optimizer automatically finds the best solution for collision-free orientation with efficient traverse movements for multi-axis machining, Open Mind explains. This allows programmers to avoid errors when manually optimising axis positions. Given the high degree of complexity, it is difficult to determine the effects on all subsequent machining steps and make decisions about the best overall solution. The Hypermill Virtual Machining Optimizer analyses complete machining sequences with powerful optimisation algorithms while considering axis limitations. Time-consuming repositioning is avoided. The Optimizer ensures efficient and safe machining operations, the company promises.

Another major advantage of the Optimizer comes into play when programming on a wide variety of machining centres. CAM programs can be created completely independently of machine properties because the simulation software automatically adjusts to the machine in use and it performs comprehensive collision checks. This gives companies greater flexibility when it comes to assigning machining capacity.

Optimizer detects limitations

The Optimizer can also detect other possible problems. For example, if a machine has a limited axis rotation, the software takes this into account when selecting tool positions and ensures smooth machining. If there is an axis limitation, the Optimizer interrupts the tool path, gently retracts and rewinds the axis to avoid the limitation. The tool then gently approaches again and machining continues. This method enables spiral machining in a limited machine. Fork head machines can also be used with the Optimizer to enable dynamic machining, the company explains.

As many axes as necessary

The software from Open Mind optimises infeed movements and automatically determines whether positioning is faster with the aid of a rotational axis. The rotation axes are moved along the shortest path, and the movements of the linear axes are minimised. This allows greater speeds to be achieved during the movements. If a 3-axis movement is not possible due to detected collisions or axis limitations, the Hypermill Virtual Machining Optimizer changes the movement with the aid of a fourth or fifth axis. The various operations, whether 2.5D, 3D or 5-axis, are linked in such a way that auxiliary processing times are shortened. The tool travels close to the workpiece while being checked for collisions and it is not retracted to a clearance plane between movements, drastically reducing cycle times.
