Tech Focus: R&D Closing the gaps in the mechanics of materials digital value chain

Editor: Steffen Donath

The greatest potential of digitalisation in companies in which materials play a prominent role lies in the cross-process linking of materials data.

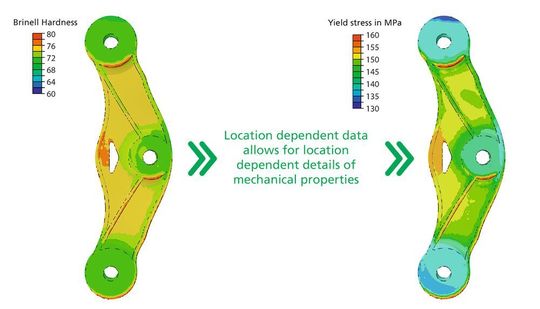

The digital twin of a demonstrator casting contains the Brinell hardness determined on an experimental basis (left). It enriches the numerical simulation of the yield stress with location-dependent data (right).
The digital twin of a demonstrator casting contains the Brinell hardness determined on an experimental basis (left). It enriches the numerical simulation of the yield stress with location-dependent data (right).
(Source: Fraunhofer IWM)

This promises to shorten component development times, faster optimisation of complex manufacturing processes and more reliable plant operation. The problem is the very heterogeneous nature of materials data, which makes linking within this data extremely complex. The research project MaterialDigital of the state of Baden-Württemberg under the leadership of the Fraunhofer Institute for Mechanics of Materials IWM in Freiburg has now made great progress in structuring materials data into a continuous data space.

Not only is there great potential for digitalisation in materials technology, but the challenges are also considerable. “Due to their complexity, materials data are extremely heterogeneous and also change continuously during the product life cycle,” says Dr Christoph Schweizer from the Fraunhofer Institute for Mechanics of Materials IWM, describing the difficulties. “The fact that they vary locally within a product and in some cases cannot be determined non-destructively via measurement technology makes their structuring, storage and linking quite demanding.”

The industry therefore faces considerable challenges: how do we gather all the data together in a meaningful way? What infrastructure do we need to accomplish this? Where do we begin with the integration of a data space? Dr Christoph Schweizer is now providing answers to these questions together with a consortium of seven research institutions that joined forces in the “MaterialDigital” research project in 2018. The Baden-Württemberg Ministry of Economics, Labor and Housing provided 2.75 million euros in funding for the project.

Pioneering work for the materials data space

Based on two use cases, the partners were able to show how companies can digitalise their material-intensive processes in order to achieve a continuous and machine-readable data space. The application case coordinated by the Fraunhofer IWM concerned the gravity die casting of aluminum parts, as used for example in the automotive industry and in mechanical engineering. For this purpose, they developed the necessary basic principles such as software tools for structuring the data and automating the workflows, and based on these, they created an exemplary material data space. In addition, the partners also provided evidence that digital value-added chains provide substantial benefit. With the help of real material and process data, the participating researchers were able to use a digital twin to handle more complex simulations and at the same time more precisely predict component properties.

Light microscope image of an aluminum cast structure with the impression of a stamp to determine the so-called Vickers hardness (black diamond).
Light microscope image of an aluminum cast structure with the impression of a stamp to determine the so-called Vickers hardness (black diamond).
(Source: Fraunhofer IWM)

“Based on data space queries, quick and precise decisions can be made in companies in which materials play a prominent role instead of having to go through expensive and time-consuming trial and error loops,” says Dr Christoph Schweizer, the overall project coordinator. “Our data space architecture is designed in such a way that it can be easily transferred to other material processes.” Tools and workflows are thus available to potentially interested industries who can adapt them to their specific needs. The materials data structured in the project use case of the aluminum casting process will be published by the consortium as a best practice example for scientific re-use.

Research potential in decentralisation and AI

For Dr Christoph Schweizer, an internal Fraunhofer program based on the national project MaterialDigital began immediately after the national project, with which the data space technology is to become decentralised and ready for use. “Further research potential of the materials data space lies in particular in integrable logics and the exploitation of machine learning,” says the business unit manager for Assessment of Materials and Lifetime Concepts. Specially designed computer models could be used to read out and make use of laws not yet stored in the process graphs. This would allow far more specific predictions to be made while the modeling steps could be drastically minimised.

Details concerning the materials data space technology

The central concern of the consortium was to develop the technical foundations and workflows for the materials data space based on established standard formats. The Fraunhofer IWM was particularly in demand here with its expertise in data handling. “In developing a uniform data structure for material-intensive processes, we had to start practically from scratch, because there was virtually no preparatory work,” explains Dr Christoph Schweizer.

An app which translates process graphs into an Excel template

With the help of this basic structure of ontology and knowledge graph, the researchers were initially able to describe individual process steps of the use cases, the so-called “process modeling”. In the next step, the individual processes were connected to each other according to their chronological sequence in the real process chain to form a virtual network. In this final materials data space, not only are the process descriptions and their metadata available, but the raw data can as well be accessed automatically via links, so that a variety of evaluations are possible.

The spatial position of the data can be checked by visualizing the component geometry and individual samples as well as selected cross-scale data sets in the graphical user interface (GUI).
The spatial position of the data can be checked by visualizing the component geometry and individual samples as well as selected cross-scale data sets in the graphical user interface (GUI).
(Source: Fraunhofer IWM)

So that laypersons can also fill the data space with data, the scientists of the project programmed an app with which the modeled process graphs can be automatically fully converted into an Excel template. This file can be filled by hand if necessary and thus does not require any previous knowledge of data spaces.

Successful improvement in the casting process.

Schweizer and his colleagues proved that this structured and comprehensively linked knowledge base brings real added value by integrating experimental data and simulations. For a cast part, they thus created a digital twin that exploits the relationship between the locally different solidification during casting and the locally varying hardness to build up a simulation model with heterogeneously distributed mechanical properties. Using insights from the data space, the simulation model can additionally be fed with precisely selected material parameters that take into account the casting specific chemical composition and heat treatment.

Based on the digital twin, the researchers were able to predict the functional mechanical properties of the casting demonstrably more precisely than with batch-independent material parameters. This was done much faster and with less effort than with previous methods.
