Hermle/WMF Automated die machining boosts manufacturing capacity
With its standardisation strategy and the C 22 UP machining centre from Hermle, the tool and mould making division of the WMF Group has managed to streamline the die and tool production processes, thereby creating the scope for services for external customers.
The WMF Group, which was founded in 1853 as Metallwarenfabrik Straub & Schweizer and has been part of the French SEB Group since 2016, has more than 2,200 employees at the Geislingen headquarters and the nearby Hayingen plant alone engaged in the development and production of high-quality cookware and cooking knives.
Many of these products are still manufactured through the primary and secondary forming of sheet metal blanks. The WMF Group manufactures most of the required tools in-house at its own tool shop in Geislingen. “For about 30 different knife models alone, we use between 100 and 150 die tools, each consisting of an upper and a lower tool made of hardened hot-forming steel," explains Hans Brühl, Part Production and Tooling Technician at WMF. To guarantee consistent high product quality, the mould makers have to rework the tools after roughly 3,000 strokes. This involves precise milling and removing approximately 0.5 mm of material, a process that is possible up to fifteen times with the dies. “In the past, we performed all these milling and finishing operations on an HSC milling machine. However, this machine could only accommodate two dies at a time, which then had to be processed successively and in several time-consuming setups. As knife production in Hayingen increased, more dies were obviously needed and this led to capacity shortages,” says Brühl when explaining the situation at the time.

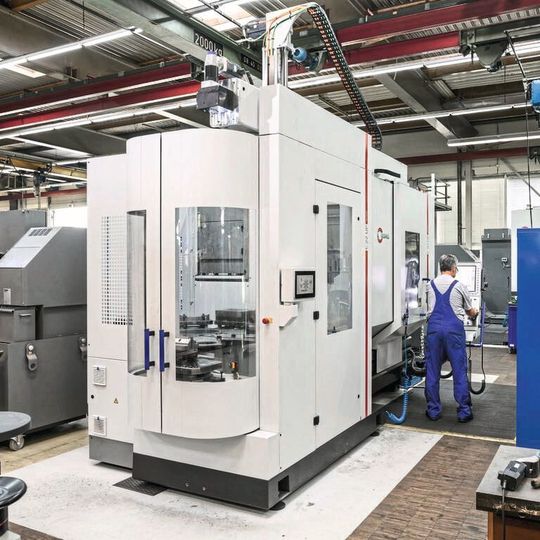

An evaluation process, which included a series of tests to assess contour accuracy, precision and surface quality and to determine whether the specification of significantly reducing machining time for refinishing had been accomplished, saw the 5-axis machining centre C 22 UP from Hermle come out on top. A machining process developed together with Hermle led to some extraordinary results: Not only was the desired reproducibility of contour accuracy and surface quality achieved, the machining time was also reduced considerably. Thanks to the equipment of the C 22 UP machining centre, featuring an 11-fold PW 150 pallet changer, it is now also possible to rework the dies automatically, in other words during the night and on weekends. This means additional capacity is now available for processing internal and external orders.
The fact that the WMF Group’s tool and mould making division was able to achieve new levels of productivity is due, on the one hand, to standardisation of the dies. On the other hand, a self-developed pallet and workpiece clamping system with 4-fold bolting directly to the pallet and the automation provided by the PW 150 pallet changer have allowed machining to become significantly more efficient. Axel Spadinger, Head of Tool Engineering & Making at WMF Group GmbH, says in summary: “We were able to reduce the machining time by 50 percent and more when refinishing the dies. Since this work is generally carried out at night and over the weekend, we can therefore use the C 22 UP machining centre very flexibly during the day for all other machining operations. Combined with our know-how in tool and mould making, we are thus in a position to meet external customer needs on time.”
