Founded in 2013, moulding company iMFLUX was created as a wholly owned subsidiary of Procter & Gamble (P&G) as the Ohio-based consumer products giant wanted to improve the technology of plastics processing. P&G saw the need to reduce the cost and lead time to launch new plastic part designs. The US-company eventually developed a breakthrough new technology that utilised low constant injection pressure, leading to the formation of iMFLUX.

Injection moulding requires precision tolerances as plastic is going into tools at up to 20,000 pounds per square inch (PSI) and the gaps between the steel has to resist the plastic from going in between them. The process iMFLUX uses is controlled by pressure rather than velocity or speed. From the moment the press goes to move the screw forward, it is controlling only a set target pressure point. Once it hits that pressure point, it will maintain that pressure until the part’s full and packed out.

The iMFLUX injection moulding process involved a specialised controller that enables filling a mold at a lower, defined melt-pressure profile, allowing a variable filling rate that automatically adapts to the part geometry. Advantages include improved part quality, new part and mold design possibilities, sustainability improvements and reduced costs.

The process begins when P&G or an external customer sends a mould design or part design concept to iMFLUX. The company then takes the concept from paper sketch through the final qualification of the mold and the part itself. There is pressure to finish the process as soon as possible to meet the customer’s expectations and also start on the next project, avoiding any bottlenecks. As a result, the time from conception to build is condensed.

Despite rapidly approaching timelines, ensuring complete accuracy throughout the process is paramount. For iMFLUX, it is extremely costly to find dimensional or mould action errors late in the process due to imperfect mould design and/or mould build process that was not virtually validated. This is where NX software comes into play.

Gallery with 8 images

Designing a next generation of moulds

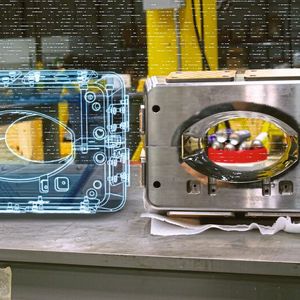

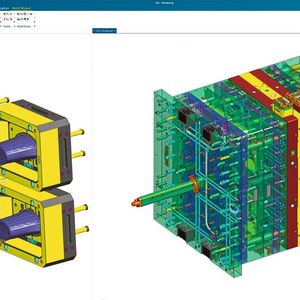

“NX Mold Wizard helps us accelerate the process by doing an analysis on the part for draft checks and wall thickness,” says Mark Reagan, mould design engineer, iMFLUX. “It establishes a core cavity split upfront and you can determine whether or not it’s really manufacturable.” NX also enables iMFLUX to pull in predesign mould bases and hardware from the NX Mold Wizard library. As a result, iMFLUX has accelerated its design process as well as its mould building process by 20 percent.

A standalone, wholly owned subsidiary of P&G, iMFLUX takes designs from concept to creation as fast as possible to unlock the speed benefits required by the parent company while still delivering the expected level of quality.

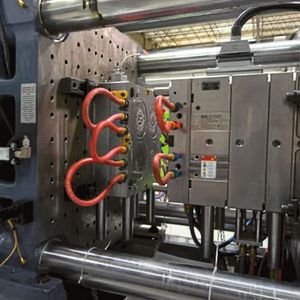

During the company’s infancy, iMFLUX used only the milling functionality of NX CAM to machine some of the mould components. But with the increasingly complex product designs that require sophisticated and high precision mould assemblies to make them, the company decided to bring all the machining disciplines within one computer-aided manufacturing (CAM) system.

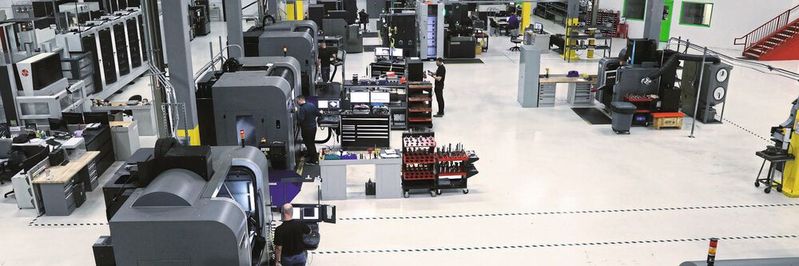

Manufacturing micron-accurate moulds

iMFLUX’s manufacturing team realised that this software consolidation would help them move faster and adapt in the evolving industrial machinery and consumer products space. The company rapidly transitioned to having fixed and multi-axis milling, turning, wire electrical discharge machining (EDM) and sinker EDM all housed within the NX CAM umbrella. “NX CAM has allowed us to be more competitive by stabilizing our processes,” says Jonathan Edwards, CAM programmer, iMFLUX. “This allows us to have first time yields in the 90-percentile range with virtually no scrap.”

Indeed, as a result of introducing NX CAM to its processes, iMFLUX can now program a range of CNC machines to make all the mould components (made of different material, such as steel and graphite) using one CAM software. The programmers now house all of the toolpaths into a single part file type, connecting the team and enabling efficient collaboration. NX’s advanced finishing methods help the company to improve part quality and extend tool life, enabling superior parts and satisfied customers.
