Functional integration 3D printing of a metal injection moulding tool with near-contour cooling

Source: Aim 3D Reading Time: 5 min

Related Vendors

HASCO Hasenclever GmbH + Co KG
Meusburger Georg GmbH & Co. KG
Renishaw plc
AIM3D GmbH

The Chair of Microfluidics at the University of Rostock is working together with Stenzel MIM Technik (Tiefenbronn near Pforzheim) on a project to print a 3D metal injection moulding (MIM) tool. The basis of the development is the use of Aim 3D's CEM technology with an Ex-AM 255 system.

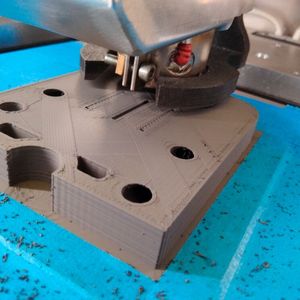

A 3D tool for metal injection moulding being produced on an Ex-AM 255
A 3D tool for metal injection moulding being produced on an Ex-AM 255
(Source: Aim 3D)

As part of a project funded by the German Federal Ministry for Economic Affairs and Energy (BMWi), a 3D printed MIM tool is jointly developed by the Chair of Microfluidics (LFM) at the University of Rostock and Stenzel MIM Technik. The duration of the project is from April 2021 to October 2023. The basis for the process and application is the use of the CEM technology from AIM3D, implemented on an Ex-AM 255 system. The project represents the current state of the art in 3D metal printing.

3D tool with near-contour cooling for metal injection moulding (MIM)

The goal of the project was to use 3D printing to manufacture a tool for metal injection moulding with near-contour cooling. In 3D printing, near-contour cooling can be incorporated as a so-called functional integration with helical channels directly in the tool. In other words, it is not embedded as inlets, as is the case with larger tools. The goal of any near-contour cooling of injection moulds made out of metals or polymers is to significantly reduce the cycle time. The principle of near-contour cooling is to guide coolant fluids through near-contour cooling channels with low cross-sections. They cool the component already during the cycle. This leads to a faster demoulding process, which significantly shortens the cycle. The complex geometry of the helical cooling channels is created with the help of CAD technology using simulation models that are based on the needs of the component. Long-term experience shows a reduction in cycle time by around 20 percent, depending on wall thickness and size.

Gallery
Gallery with 5 images

As an integrated component solution, 3D printing offers the advantage of a one-shot technique as a functional integration compared to mould-bound processes. The application example therefore demonstrates an opportunity to drastically reduce the time-to-market. The aim of the cooperation project is to develop a new process chain for the cost-efficient and rapid production of MIM tools. Up until now, time periods of up to eight weeks have been needed to produce a conventional metal injection mould. With 3D metal printing, the provision time of a MIM tool can be reduced to about five days.

Details of tool development at the University of Rostock

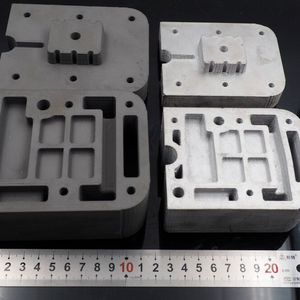

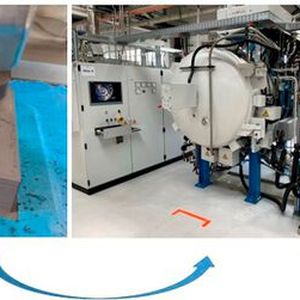

As part of the cooperation, an optimised 3D model of the tool was initially developed using CAD and simulation tools. This data was then transferred to the Ex-AM 255 CEM system, together with the necessary process parameters. A so-called green part is then 3D printed. Afterwards, the part is sintered in a multi-stage process to produce the final material properties. With this process, complex metallic components can be rapidly produced after the necessary debinding and sintering steps. At the same time, the CEM process allows for the control of the volumetric shrinkage associated with sintering. The resulting mould has a cavity. The component consists of a thick-walled part with thin fins. These fins cannot be produced without near-contour cooling, as they are difficult to demould. Stenzel MIM Technik hopes to achieve a significant reduction in cycle time for this component by up to 70-80 percent. However, injection moulding trials for testing are still pending.

Material diversity with the Ex-AM 255

The multi-material 3D printer Ex-AM 255 can be used with a variety of different materials (metals, plastics, ceramics) and with various processes (hybrid components). Compared to powder bed processes or even other 3D printing processes that use filaments, systems using the CEM process achieve tensile strengths that come close to classic thermoplastic, mould-bound injection moulding. The price advantage of 3D printing is particularly striking when commercially available granulates are used instead of filaments. When granulates are used, the CEM process leads to cost savings of up to a factor of ten.

Interview with Dr. Abdullah Riaz

Please briefly describe the objective of the project on the additive manufacturing of MIM tools.

The aim of the cooperation project is to develop a digital process chain for the cost-efficient and rapid production of MIM tools. Up until now, periods of up to eight weeks are needed to produce a metal injection mould. This project aims to reduce the provision time to about five days.

In other words, a drastic reduction of the production time of such tools. Which procedural approach did you choose?

Composite Extrusion Modelling (CEM) by Aim 3D is an additive manufacturing process that uses feedstocks consisting of plastic binders and metal powders known from metal injection moulding (MIM). With this process and after the necessary debinding and sintering steps, complex metallic components can be rapidly produced.

What potential do you see with regard to this approach?

Additive manufacturing of moulds allows for a highly accelerated production process. End customers can thus be served more quickly. The CEM process represents the current state of 3D technology. For the production of additively manufactured 3D components, it offers the potential of being able to manufacture tools much faster than conventional tooling methods thanks to high build-up rates. With the CEM process, both material and machine costs can be reduced and at the same time the problems of additive manufacturing with regard to residual stresses and material adjustments on the individual machines can be avoided. This innovative solution allows tools to be produced four to eight times faster and at the same time more cost-efficiently.

What experience did you gain during the development project?

One challenge is the sintering step of a metal 3D-printed so-called green part during post-processing to produce a functional part. Due to this, one has to predict the resulting volumetric shrinkage of the parts with simulations. Of course, the setup time is crucial, that is, the time that a 3D printing system needs to produce the green part. It defines which system technology can be used more economically. Of course, the decisive factor is the qualitative comparison with a tool produced by conventional machining. In 3D metal printing, we achieve densities of over 98 percent within narrow tolerances of the component. This results in a very high quality of the tool. The CEM process on a state-of-the-art Ex-AM 255 is able to address this condition sufficiently.

Will this 3D approach change the future of toolmaking?

This depends on the dimensions of such a tool. With smaller moulds, the charm lies in fast build rates. This results in an economic limit for larger moulds, which is defined by the respective state of the art of the system technology. With increasing build rates, this limit can be shifted upwards. In the future, functional integration, such as near-contour cooling and the one-shot strategy for reducing the number of components with a 3D printing process, will be interesting. Among other things, this can eliminate the need for assembly and simplify the component.
