Walter expands range of face milling cutters

Milling Walter expands range of face milling cutters

13.01.2023 Source: Walter

Related Vendors

AMETEK GmbH Division Creaform Deutschland

In addition to the M5009 (к 45°) and the M5012 (к 88°), Walter is now launching another Xtra-tec XT face milling cutter in the form of the M5011 (к 75°). All three milling cutters can be equipped with the tough, double-sided SN.X1205 system insert with 8 cutting edges.

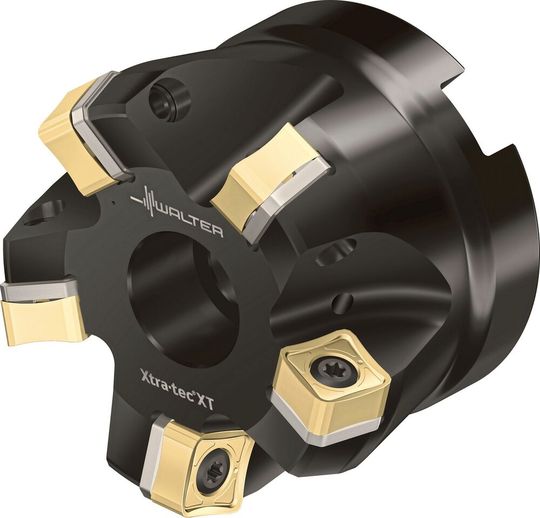

Walter is launching another Xtra-tec XT face milling cutter.
(Source: Walter)

With the M5011, cutting tool manufacturer Walter is introducing a new face milling line. Just like the existing M5009 and M5012 cutters, the M5011 can be equipped with SN.X1205 system inserts. An additional system insert, the SN.X0904 is available for use with the M5009 and the M5012 for smaller depths of cut. The insert range includes Walter's own Tiger-tec Gold grades, making them incredibly wear-resistant. Depending on the material or machining objective, the user can choose between five geometries. This provides the choice for machining large batch sizes, high stability and process reliability achieving long tool life and high productivity with almost all ISO materials.

By adding the M5011 to its range of milling cutters, the Tübingen-based manufacturer is providing a range equipped with either roughing or wiper inserts for finishing. To this end, the Xtra-tec XT M5011 face milling cutter can be used for reducing the process costs and tool requirements. Walter offers the milling cutter with a diameter of 50 to 160 mm in two different tooth pitches for diameters 63 to 125 mm and with a depth of cut up to 8 mm. In the version with fewer teeth, the indexable inserts are mounted on a carbide shim. This protects the milling body and the remaining unused cutting edges against damage. It also maintains the cutters usability, even with long machining times. Inclined clamping screws make the indexable inserts easy to access and it shortens the indexing time.

(ID:49008903)
