Additive manufacturing This laser deposition welding system can handle both wire and powder

Editor: Alexander Stark

UK — With its patented technology enabling laser deposition welding with both types of feedstock material — wire and powder, the Chirion AM Cube 3D that is now available from the Engineering Technology Group (ETG) has added another new feature.

Related Companies

With its three application heads, the AM Cube can apply both wire and metal powder in various phases of production.
With its three application heads, the AM Cube can apply both wire and metal powder in various phases of production.
(Source: ETG)

The Chiron AM Cube 3D metal printer that was launched last year has now received more new features. They include comprehensive documentation of the process data via Data Line AM and the ability to capture the welding process in real time using the digital Visio Line AM system.

Laser deposition welding with AM Cube is suited to a whole variety of different processes and industries, used in the mechanical engineering, tool manufacturing, energy production and even in the aerospace industry. From coating and repairing components to printing near-net-shape parts, there are so many applications for additive manufacturing. Now, the Chiron Group has succeeded in offering two processes — laser deposition welding with both wire and powder — from just one comprehensive system. This advantage is a unique feature of the AM Cube. The deposition head can be changed fully automatically during the process, with up to three deposition heads in total.

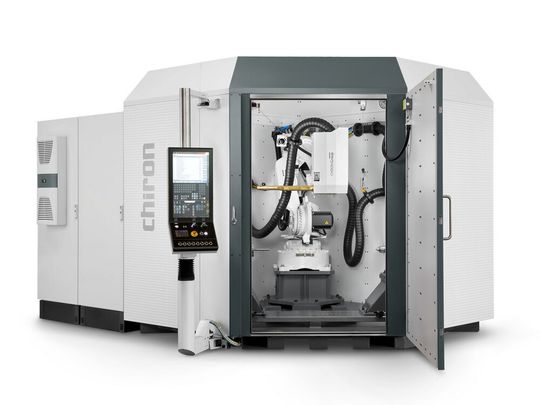

The automatic changing of the application heads is a key advantage of the AM Cube.
The automatic changing of the application heads is a key advantage of the AM Cube.
(Source: ETG)

The system is a combined solution for generative manufacturing and is designed using a Cartesian coordinate system, just like a conventional machining centre. The laser deposition welding technology is especially well-suited to small quantities and large components with long procurement times and high material prices. This is credit to the AM Cube’s effortless switching from four to 5-axis machining, achieving high order volumes while maintaining an excellent surface quality. The AM Cube can also operate unmanned, providing that all the relevant safety precautions are taken.

The new Data Line AM documents a variety of process data during deposition welding and displays them into an easy-to-understand visualisation of the data, live on the monitor. The new digital system Visio Line AM allows systematic process monitoring via a camera system. Both systems build the foundation for a wide range of options to analyse the welding process and create new opportunities to optimise the manufacturing process.
