Milling Supplier adds reduced footprint unit to its line of 5-axis gantry machines

Editor: Eric Culp

Delivery times for the unit are quick due to easy availability of parts, according to the manufacturer.

Related Companies

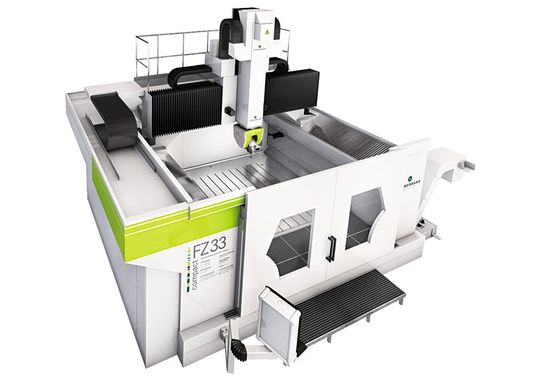

The gantry machine’s compact design is said to allow for flexible installation.
The gantry machine’s compact design is said to allow for flexible installation.
(Source: F. Zimmermann)

Some 80% of parts in the gantry milling machine FZ 33 Compact from Zimmermann come from the company’s FZ 33 unit, and it suits small to medium-sized workpieces. According to the company, the machine has a good price-performance ratio and is ideal for applications in a diverse range of industries, including aerospace, automotive and tool- and mould making.

The machine offers a generous work area (2,500 mm x 3,000 mm x 1,250 mm) and stable machining with a small footprint, the company said. Zimmermann designed the machine for 5-axis machining of aluminium and composite parts in one setup, but steel and cast iron parts can also be finished. High dynamics are combined with a precise and high-resolution measuring system for accurate positioning, the company said, noting that a rigid machine bed and gantry contribute to the machine’s dynamics. The company added that the unit offers high torque and the A- and C-axis rotate with a speed up to 360°/s.

Exclusive:Interview with head of German machine tool maker Heller

Delivery times are said to be short due to optimised production and assembly processes while service technicians have easy access to the machine.

The company said it only uses high-quality components which guarantee a long service life.

A 50-station tool changer is also available, and the milling heads VH 30 and VH 20 are said to be suitable for all applications.

Thanks to the use of standard components, a modular structure and many parts kept in stock, the machine comes at a good price and short-term return on investment, Zimmermann said. Moreover, the unit is energy-efficient, and the compact design allows for flexible installation, according to its supplier.
