Hasco New single shot nozzle
The Hasco nozzle range has now been extended by the highly efficient, yet still particularly low-cost, Single Shot nozzle series.

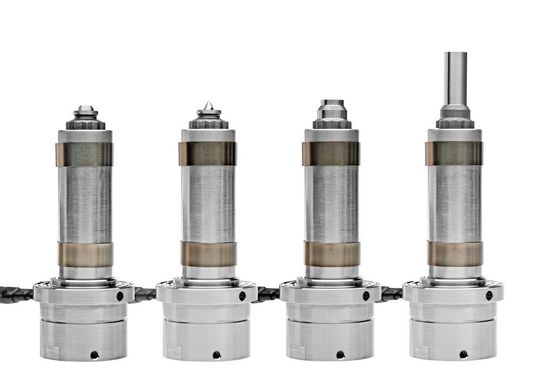

In developing the new series, the focus was on compatible installation dimensions, optimum temperature control, functionality and a cost-optimised design. The many different nozzle variants allow a straightforward feed into a sub-runner or direct gating to the moulded part, Hasco explains.
High-end solutions are not always necessary. For many applications, it is sufficient to have an efficiently and inexpensively designed nozzle. The new Single Shot nozzles can be used for all easy-to-process plastics, as well as engineering plastics and those with a low level of reinforcement. The nozzles come in two sizes and are suitable for the production of small and medium-sized injection mouldings with a shot weight of up to 800 g and immersion depths of up to 179 mm.
The interchangeability of the relevant wear parts, including tips and melt chambers and also the thermocouple, facilitates servicing and maintenance. The heating unit, which is firmly pressed directly onto the body of the nozzle, has just one control circuit and guarantees a uniform temperature over the full length of the nozzle.
The suitably adapted heating-capacity distribution and the gentle conveyance of the melt through flow channels, with generously-dimensioned diameters, ensure a homogeneous temperature profile and low-shear mould filling. Because of the ideal arrangement of the Fe-CuNi thermocouples and the efficient insulation from the cold mould, plastics with a more limited temperature range can also be reliably processed, the company states.
The aims pursued in designing the nozzle were to achieve the biggest possible melt throughput for a compact design and the maximum possible stability. Since the nozzle has only one control circuit, it is suitable for small installation spaces and the pressed-on heating ensures a very low overall energy requirement.
