New products for hot runners and control systems

| Editor: Steffen Donath

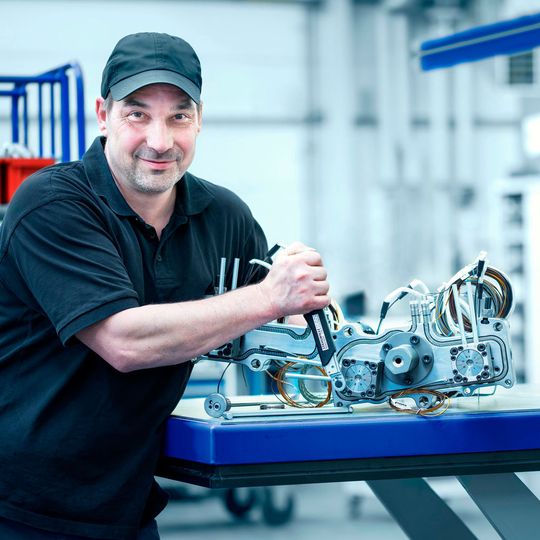

Redevelopment of operating units for valve gate nozzles.
Redevelopment of operating units for valve gate nozzles. (Source: Meusburger)

Meusburger's PSG product brand has expanded the number of versions of the Smartfill nozzle series with a new focus.

The range is perfectly complemented by the pneumatic and hydraulic operating unit for valve gate nozzles. In control systems, the combination of a VCON controller with the Profitemp+ in one cabinet has been made possible.

The newly developed series focuses on melt guidance and ease of maintenance. With the large variety of nozzle lengths, melt channel diameters and gate geometries, the Smartfill nozzle series is now also available in the large 4557 and the small 4019 versions. The nozzles are available in the variations Smartfill (slide seal), Smartfill Shot (screwed in) or Smartfill Shot Single (single application). They are not only suitable for processing technical and filled plastic types, but also for direct gating or gating to a cold runner. The new concept of heating right up to the injection point ensures a homogeneous temperature profile.

Further product properties:

  • Fast and easy heater change thanks to spiral/wedge clamping
  • Small cavity distances possible due to small fitting dimension Ø19
  • Hot runner nozzles can be used for shot weights from 0.5 g up to 2,500 g
  • All gate types available: ring gate RT, DRT, DRT-L and valve gate NZ, DNZ, DNZ-L

Compact redevelopment

Compatible with the sSmartfill nozzle series, the pneumatic (DP 53x63) and hydraulic (MH 24x55) operating units for valve gate nozzles are new in the range. With the pneumatic operating unit, the pin is opened and closed via the clamping plate using compressed air. Even with individual actuation of each nozzle, tight inside dimensions are possible for both units. This makes these operating units particularly suitable for use in conjunction with the 19 and 27 nozzle sizes in the Smartfill series.

Further product properties:

  • Flange-mounted and cooled hydraulic operating unit (MH 24x55)
  • Precise pin positioning via a vernier scale, which results in hardly visible injection points and improved reproducibility of injection point quality
  • Valve pin secured against twisting as standard (MH 24x55)

All options in one cabinet

During the opening or closing of the valve pin, it is possible to control the various pin positions hydraulically in staggered modes. For cascaded filling of injection moulded parts with several injection points, visible defects on moulded parts can be avoided this way.

Further product properties:

  • Simple and inexpensive changeover from hydraulic hot runner systems to Variofill advanced
  • Profitemp+ VCON: VCON controller can be combined with a hot runner control device in one cabinet
  • Integrated handling of temperature and cascade control
  • Touch screen operation
